Aero Manufacturing Co

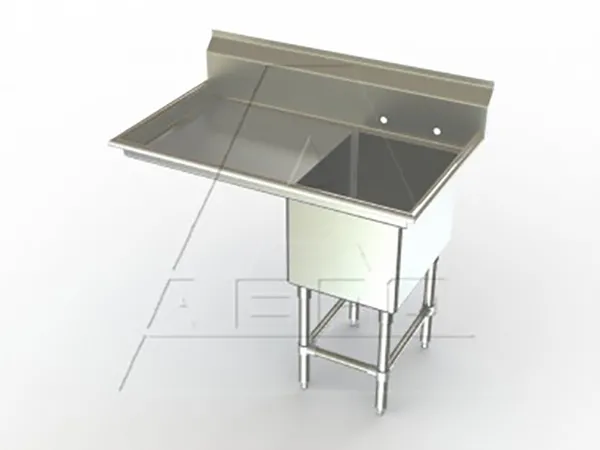

F1L Series, Single Bowl Sink - Left Drainboard

Material

Body

MF - 16 gauge 430 stainless steel, 430 body

3F - 16 gauge 304 stainless steel

2F - 14 gauge 304 stainless steel

Legs

1 5/8" O.D 16 gauge stainless steel legs complete with 1" adjustable, impact resistant, plastic feet

Design Features

• All sinks are fully cartoned
• easily assembled
• Design saves precious space through use of bowl partitions

Construction

• Exclusive 14"" Bowl depth (consultant's specification)
• Custom style fabricated bowl for true gauge integrity
• All sinks have a 3/4"" radius at all intersecting planes (consultant's specification)
• Stainless steel gussets are machine welded 360 degree to a stainless steel triangular plate
• Gusset plates are fully welded directly underneath the sink for support
• Polished to a # 4 blended finish

Plumbing

• water supply is 1/2"" hot and cold
• faucet holes are 8"" o.c. (faucets not included)

Aerospec Difference

• Aerospec includes all of the features listed above plus the following:
• Full 10"" backsplash instead of standard 7""
• Stainless steel feet in lieu of white metal
• Legs have stainless steel crossbracing with aluminum castings at all intersections
