Eaves Channel

Eaves Channel

Albion Eaves Channel is provided as an economic alternative to the Sigma Eaves Beam on smaller spans. (less than 6m)

The channel is 175mm deep and in three thickness 1.8mm, 2.0mm and 2.5mm.

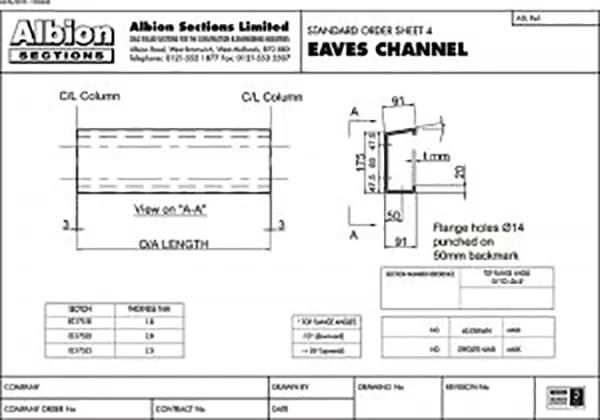

Intermediate restraints are manufactured from 45 x 45 x 2mm angle. Complete the necessary information as shown on the standard details sheet.

Note that packing plates and countersink bolts are required if a flush web face is required.

The eaves channel has not yet been included in the design software so please contact Technical for design assistance.
