Bluff Manufacturing Inc

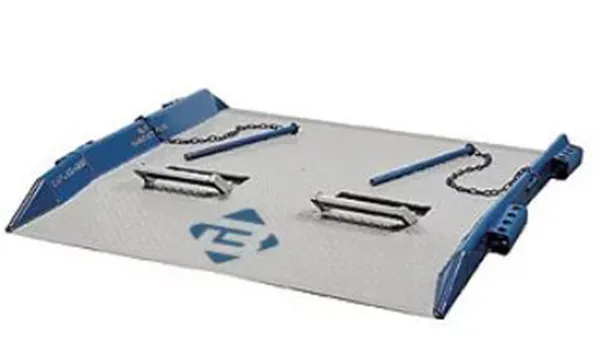

STEEL DOCK BOARDS

Rated for forklift use, Bluff Steel Dock Boards provide an easy transition from dock to truck. The fully-welded designs aid in safely loading and unloading freight and are available in capacities from 10,000 to 40,000 lbs. Manufacturing time 5 working days.

All steel dock boards are manufactured and tested in compliance with ANSI Standard MH30.2 and are OSHA 1910.26 compliant.

Model T – Pin Style

Capacities from 15,000 to 40,000 lbs

Two four-hole pin pockets placed on each edge

Above and below dock loading

Fold-down lifting loops

Widths from 60” – 84”

Lengths from 48” – 120”

This heavy duty steel dock board is held in position using two 1″ stress-proof steel pins. When properly placed in the side pin pocket locations, these pins hold the dock board firmly in place, guarding against slippage. Simply select the proper pin hole location to utilize once the board is in place between the dock and trailer. Can be used for below dock loading situations depending on the height differential.
