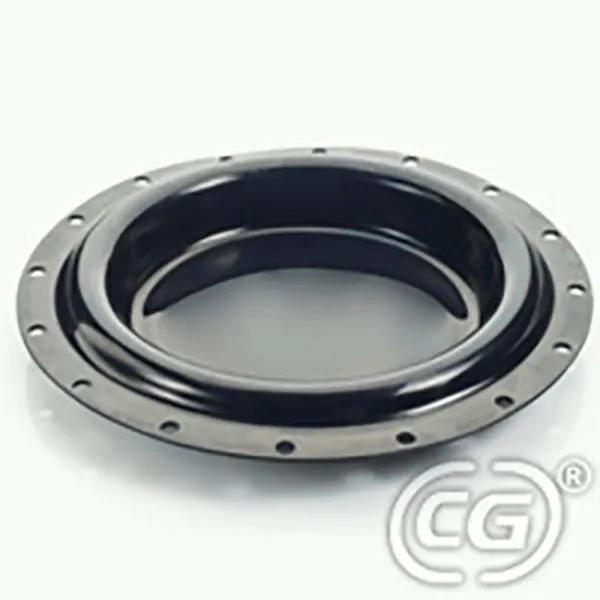

Fabric Reinforced Rubber Diaphragms

Custom Gasket Mfg. provides a variety of custom molded fabric reinforced rubber diaphragms designed and engineered for specific industry applications, including pneumatic actuators, pumps and control valves. Our years of experience in the gasket manufacturing industry has proven that certain applications demand that a rubber elastomer layer must be very flexible and tough in order to withstand repeated flexing over a long lifetime. It is required that each and every custom molded rubber diaphragm be able to handle mandatory operating temperatures and also be resistant to any chemicals, fluids or gases it may come in contact with. The construction of fabric reinforced rubber diaphragms is achievable using special reinforcement materials including:

• Polyester (Dacron)
• Polyamide (Nylon, High Strength)
• Cotton
• High-Temp Polyamide (Nomex®)
• Liquid Crystal
• Polymer-Based fabrics (Vectran®)
