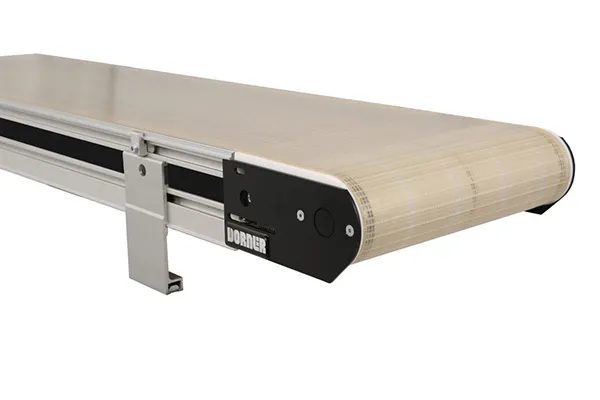

3200 Precision Move Conveyors

3200 Precision Move Conveyors

Benefits of 3200 Series Precision Move Conveyors:

Specifications:

• Loads up to 750 lbs (340 kg)
• Belt speeds up to 517 ft/min (158 m/min)
• Belt widths: 4” (95 mm) to 18” (457 mm) in 2” increments
• Conveyor lengths: 2’ (610 mm) to 50’ (15,240 mm)
• 21 tooth H (1/2”) pitch profile timing belt (10 mm Metric pitch available)
• 3.3” (84 mm) pitch diameter drive and idler pulleys turn approximately 10.5” (267 mm) of belt per revolution
• Optional M5 belt inserts
• Optional pallet mounting bars, 5/16” x 1/2” plated steel
• Conveyor package w/ servo motor index repeatability ± 0.02”
• 100 Indexes per minute rated

Features & Benefits:

• High load capacity urethane belting with kevlar cords (True Timing Belt)
• No capacity drop when pushing belt
• All widths feature a single belt for increased mounting flexibility
• Positive drive no slip belting and side guides provide worry free belt tracking
• Use optional cleats to create pockets for controlled part flow
• Minimum pallet mounting bar is spacing 1” in length
• T-slots make mounting accessories simple with no drilling or special tools
• Compatible with standard drive packages
• Available with servo motor and mounts for increased accuracy of index
• Servo package includes fully integrated solution with intuitive PC interface
• Sealed ball bearings
