TORQUE RESILIENT COUPLINGS

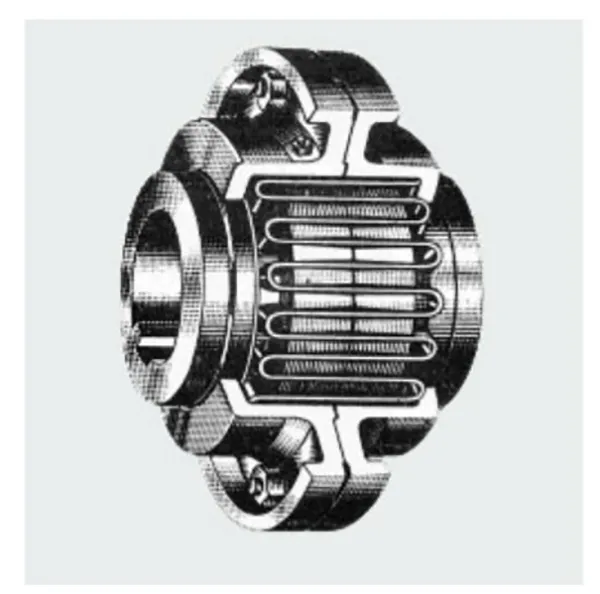

"GBM HI -Torque"Type Resilient Couplings are in use in all types of industrial applications over many years with success. Such a Resilient Coupling comprises mainly two Hubs, Grid Spring and Covers to protect the Spring. The Grid Spring element is so designed that it provides required resiliency for variable flexibility of a Coupling and considerable damping properties making the Coupling very suitable for drives involving high shock loads to the extent of 80%. Misalignment that inevitably occurs between rotating shafts, which are independently supported, is also taken care of by the spring element within allowable limits.
Dimensions given in the tables are approximate and pertain to Standard Coupling of GBM range, but tailor-made Couplings with Hubs of longer or shorter lengths, Seals & Grub Screws can also be supplied as per requirement of individual customer. Following service information must be furnished with enquires:
1. H. P. & R. P.M. of the Drive.
2. Types of driving & driven machines.
3. Nominal diameters and lengths of shaft extensions of both the machines.
4. Dimensional details of finished bores & keyways, if required.
5. Any other details relevant to the working conditions of the Drive.
