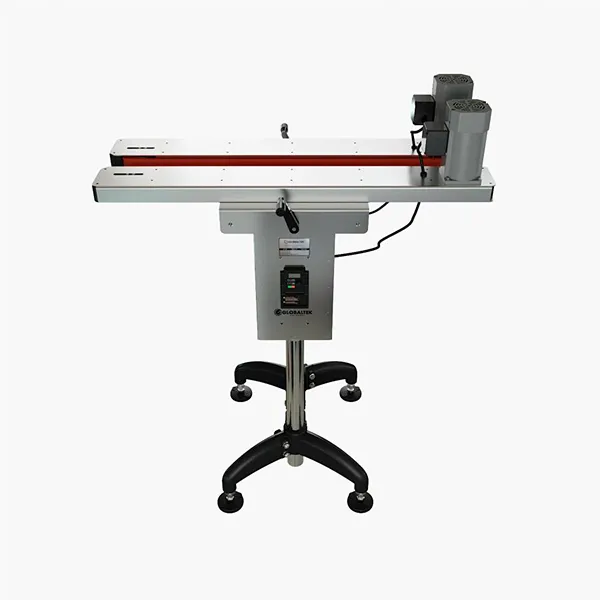

GLOBALTEK Bottomless Side Belt Transfer Conveyor

GLOBALTEK Bottomless Side Belt Transfer Conveyor

The GLOBALTEK™ Bottomless Conveyor is equipped with AC Gear Motors. This item has variable speeds and is used in moving containers a short distance from one working/transportation conveyor to another. The Bottomless Conveyors is designed to access the bottom side of the container for coding expiration dates, lot numbers, and many more. The Gripper Belts are independently adjustable using an easy adjust handle wheel, accommodating containers up to 8" in diameter.

MAIN FEATURES

• MADE IN USA WITH 100% UL CERTIFIED COMPONENTS
• STAINLESS STEEL FRAME
• UP TO 100 FT/MIN
• PINCH POINT PROTECTION
• TECO VARIABLE FRECUENCY DRIVE: INPUT VOLTAGE:115 PH / OUTPUT VOLTAGE 230 VAC/3PH

TECHNICAL DATA

 AC GEARMOTOR 1/15 HP, 95 RPM, 39 LB/IN , 230VAC THREE PHASE MOTOR, 17:1 GEAR RATIO

• MACHINE ELECTRICAL REQUIREMENTS: 115 VOLTS / 1 PH / 60 HZ
• ADJUSTABLE BELT OPENING: 0” TO 7 3/4“
• BELT SIZE: 36” L X 1” H
• FLOOR TO BELT HEIGHT: 35 ½” TO 42”
• OVERALL MACHINE DIMENSIONS: 38” L X 24 ½” W X 44” H

OPTIONAL FEATURES (ADD ONS)

• PRINT HEAD BRACKET
• BOTTLE SLIDING PLATE
• LOCKING CASTERS
