Hammond Manufacturing Co. Ltd.

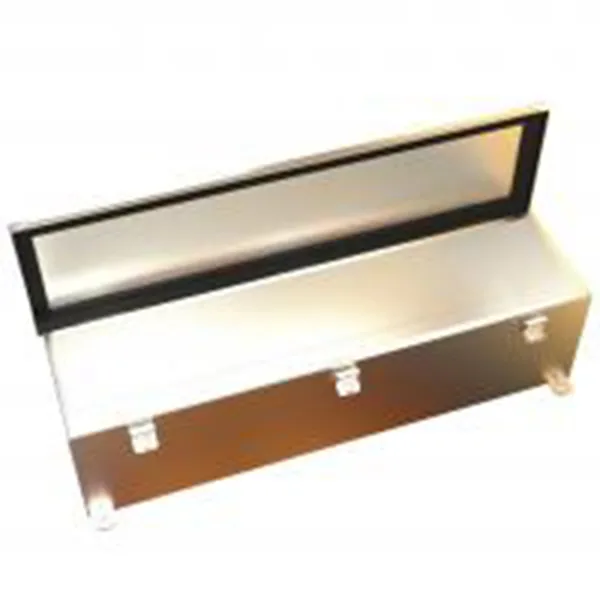

Type 4X Wiring Trough

Application

Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water while providing a measure of corrosion protection.

Standards

UL 870 Type 1, 12, 4, 4X

CSA Type 1, 12, 4, 4X

Complies with

• NEMA Type 12, 4, 4X
• IEC 60529, IP66

Construction

• Formed 14 gauge 304 stainless steel.
• Smooth continuously welded seams.
• Butt hinged cover is secured with easily operated screw clamps.
• Oil resistant gaskets are permanently secured.
• 12 gauge external mounting feet are welded to the back.

Finish

• Troughs and covers are natural stainless steel with a smooth brushed finish.
