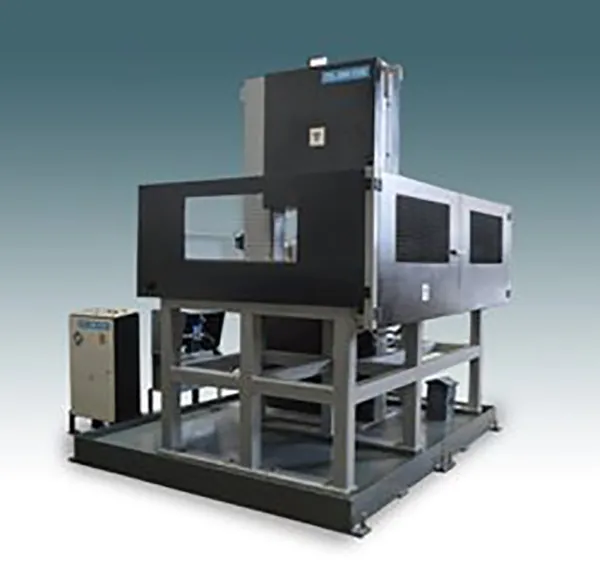

ITL-300 V3H Vertical Band Saw Machine

ITL-300 V3H Vertical Band Saw Machine

ITL-300 V3H Vertical Band Saw Machine

Product Details:

Approximate Weight

2800 Kg

Band Size (L x W x T)

6300 x 34 x 1.1 mm

Blade Tension

Hydraulic

Frequency

50/60 Hz

Hydraulic Motor

2 HP

Max. Band Speed

100 m/min

Max. Job Height

300 mm

Max. Throat

600 mm

Min. Band Speed

20 m/min

Overall Size

2300 x 2200 x 2950 mm (L x W x H)

Saw Motor

7.5 HP

Table Size (L x W)

900 x 900 mm

Table Travel

600 mm

Work Table Operation

Hydraulic

Phase

3 Phase

Voltage

415V

Model Name/Number

ITL-300 V3H

Brand

ITL

Machine for special purpose applications:

  • For tool room cutting including Relief Angle on Stamping Dies.
  • Destructive Testing of Radial Tyre for Cords Spacing.
  • Die Cast Runner and Riser Cutting.
  • Destructive Testing of Automobile Engine Block.
  • Rail Slitting for points & cross and Expansion Joints.
  • Silica Slab Cutting for Solar Chips.
  • Graphite Block Cutting.
  • Aluminum Cast Slab Ends cutting online.
  • Scraper Notch cutting for Sugar Industry.
  • Circle cutting machines for ferrous, non-ferrous and non metals.
