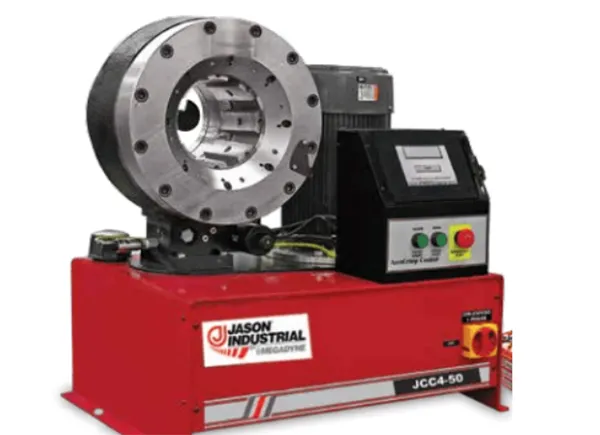

GENERAL PRODUCTION HOSE CRIMPER
GENERAL PRODUCTION HOSE CRIMPER
UNIQUE USER FRIENDLY PATENTED ACT™ CONTROLLER
- Fully adjustable crimp to diameter
- Production capabilities
- Memory capacity for accurate repeatability
- Automatically converts inch to mm and mm to inch so that no calculation is ever required
Patented ACT™ Controller
Offers 4 language settings to choose from English, Spanish, German and French
Features Of Operator Interface
User Friendly navigation, Manual Mode, Semi Auto Mode, Full Auto Mode and Production Features
Pressure Compensation
Uses pressure to eliminate “trial and error”
ENGINEERED TO ACCOMMODATE YOUR NEEDS
- Hose capacity up to 2-1/2″ 6 wire hydraulic hose and up to 3″ industrial hose
- Modern Patented ACT™ Controller with large touch screen and user friendly navigation
- Foot Switch for use in Semi and Full Automatic Mode, keeping both hands free
- Quick Change Tool makes die changes a quick and simple process
- Adjustable Back Stop speeds multiple crimps of the same hose and fitting
- Easy grease maintenance through eight grease fittings
- Protective Master Die Foam Pads between the die fingers prevent debris from dropping into the critical surfaces and causing permanent damage
- Reservoir mounting holes allow the crimper to be bench or truck bed mounted if required
DURABLE, RELIABLE DESIGN = PROFITABILITY
- 340 Tons of crimping force
- 7.5 HP motor wired at 230 volts 3 phase with gear pump for fast crimps (Standard)
- Complete range of dies and accessories available
Products covered by all or some of these Patents: US 7,383,709; US 8,230,714; EP 1,909,987 and Patents Pending
