Bow Springs

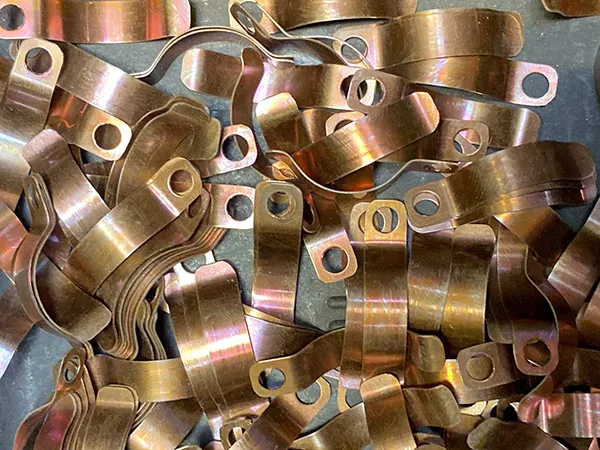

Katy Spring serves the oil and gas industry by manufacturing custom bow springs. Below is a sample of Bow Springs used in the O&G industry, made out of inconel x-750.

Bow springs, also called simple beam springs and arc springs, are commonly manufactured from a flat bar or strip. The name is inspired by a metal strip that resembles a hunting bow and is formed with an arc at or near the center. It is supported on both ends with the force applied to the center of the arc.

We offer cantilever spring designs made from the same materials, but clamped on one end while force is applied to the other end. We also offer straight and spiral bow spring designs. Edge style plays an important role based on the application.

• Square edge
• Round edge
• Milled
• Precision machined
