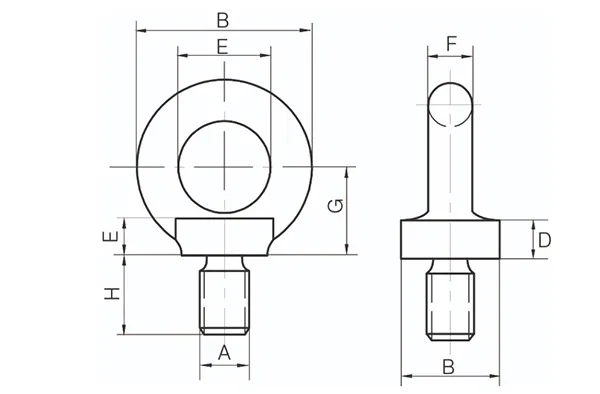

Collared Eyebolts to BS 4278 Part 1 1984 Tested and Certified
Product Code Verticle A B C D E F G H Weight (kgs/each)
MCE06 0.1 M6" 22mm 7mm 15mm 9mm 20mm 18mm 0.07
MCE08 0.15 M8" 22mm 7mm 15mm 9mm 20mm 18mm 0.07
MCE10 0.33 M10" 22mm 7mm 15mm 9mm 20mm 18mm 0.07
MCE12 0.4 M12" 22mm 7mm 15mm 9mm 20mm 18mm 0.07
MCE16 0.8 M16" 29mm 10mm 20mm 12mm 26mm 23mm 0.16
MCE18 1 M18" 36mm 12mm 24mm 14mm 32mm 28mm 0.28
MCE20 1.6 M20" 40mm 14mm 27mm 16mm 36mm 32mm 0.44
MCE22 1.6 M22" 45mm 15mm 30mm 18mm 40mm 35mm 0.56
MCE24 2.5 M24" 52mm 17mm 35mm 21mm 46mm 40mm 0.84
MCE30 4 M30" 65mm 22mm 44mm 26mm 58mm 51mm 1.66
MCE33 5 M33" 72mm 24mm 48mm 28mm 64mm 56mm 2.24
MCE36 6.3 M36" 81mm 27mm 54mm 32mm 72mm 63mm 3.14
