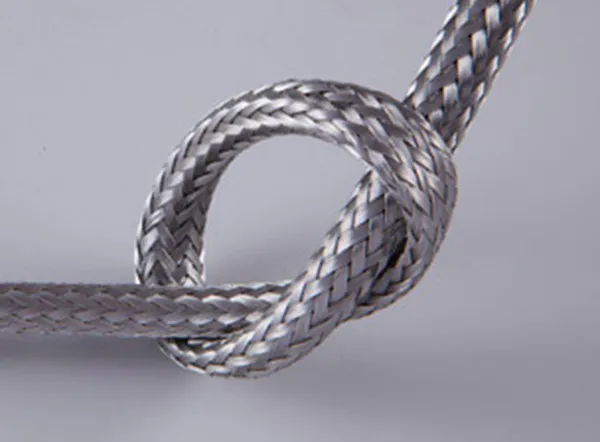

Braid

Braid

We make all kinds of wire braid, from small 100 metre prototype lengths to continuous runs in a wide variety of metals, sizes and constructions.

Stock braid materials include copper (plain and tinned), aluminium, clear PVC coated, and antenna braid.

We can also manufacture these to individual client and application specifications.

Technical Information

Part No.	Amps	Construction	Dimensions (mm)	OD	CSA	WT KG/ 100MTS
Plain Copper Braid
211-0010	10	16/4/0.10	2.0 x 0.6	1.25	0.5	0.52
211-0020	20	16/5/0.15	3.0 x 1.0	2.50	1.41	1.32
211-0030	30	24/7/0.15	7.0 x 1.25	4.00	2.97	2.96
211-0040	40	24/12/0.15	9.0 x 1.25	5.00	5.09	4.94
211-0050	50	24/10/0.20	10.0 x 1.5	6.00	7.54	7.71
211-0100	100	32/16/0.20	20.0 x 1.5	9.00	16.08	16.44
211-0150	150	32/27/0.20	25.0 x 2.0	13.00	27.14	27.24
211-0200	200	2/32/21/0.20	25.0 x 3.0	15.00	42.20	43.15
211-0250	250	2/32/29/0.20	25.0 x 5.0	17.00	58.00	59.32
Clear PVC Covered Tinned Copper Braid
212-2815		24/9/0.30	21 x 4.5	FLAT	15	15.75
212-2839		2/32/9/0.30	28 x 6.0	FLAT	39	41.00
212-2870		32/11/0.30 2/32/10/0.30	34 x 7.5	FLAT	70	74.00
Tinned Copper Braid
213-0020	20	16/5/0.15	3.0 x 1.0	2.50	1.41	1.32
213-0050	50	24/10/0.20	10.0 x 1.5m	6.00	7.54	7.71
213-0100	100	32/16/0.20	20.0 x 1.5m	9.00	16.08	16.44
213-0150	150	32/27/0.20	25.0 x 2.0	13.00	27.14	27.24
Aluminium Braid
310-0025	25	16/6/0.30	9.5mm WIDE		6.78	2.00
310-0050	50	16/14/0.30	19mm WIDE		15.83	4.70
310-0100	100	32/14/0.30	25mm WIDE		31.66	9.40
Plain Copper Braided Cord
214-0196		16/7/0.1 7/75/0.1		3.4	5	4.8
