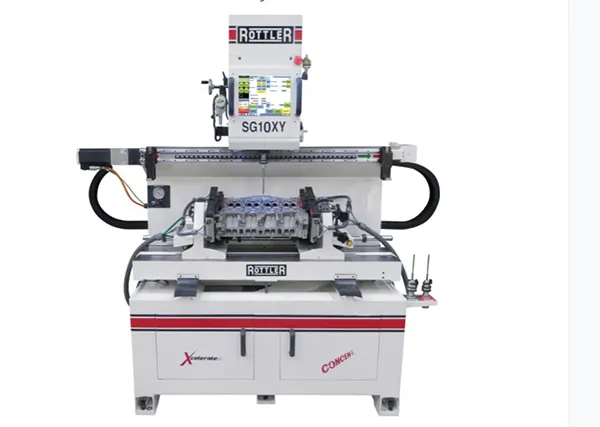

Rottler SG10XY

The Rottler SG10XY ACTIV spindle is mounted on a sphere which allows the UNIPILOT to automatically center with the valve guide centerline while the Workhead is floating on air cushions. Once air floating stops and the Workhead clamps, the UNIPILOT and valve guide centerline are maintained while cutting the valve seat.

• ACTIV SPINDLE - Spherical Pneumatic Automatic Alignment System built into the Spindle for fast location of the pilot into the Valve Guide and Accurate Centering (Patent Pending)
• Air Float Work Head on Intermediate Base Plate
• Heavy Duty Spindle - Diameter 3.150” (80mm) Hardened and Ground with 8” (200mm) of vertical travel.
• Rottler Automatic Tightening and Quick Release Spindle Lock Nut System for One Hand Operation for fitting and removing tooling to and from the spindle – never comes loose

Gives Best ConcentricityRottler's Rigid Precision carbide centering UNIPILOTS are manufactured to less than one tenth (.002mm) tolerance. Combined with the light weight air float Workhead the SG10XYgives perfect centering in the valve guide and the best concentricity of any machine on the market,
