Pass Thru Steady Rest – 200 Series

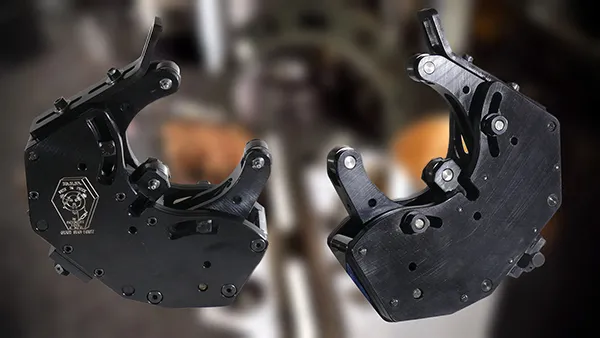

Rest in Piece is a “Pass Thru” Heavy Duty Steady Rest designed for todays extreme machining, tight tolerance workholding needs. The photo shows a steady rest designed for a slant bed lathe, and can be designed to fit applications from flat bed CNC’s to manual lathes as well as VMC’s with 4th axis tables. The design allows for a wide range of sizes and the rigidity needed to produce excellent finishes.

FEATURES:

• Each rest has a wide work range.
• Roller bearings are designed for high loads.
• Fine threaded adjustment screws along with bronze nuts provide a smooth adjustment.
• Plates are blanchard ground and working parts are hardened.
• Parts are black oxided for corrosion protection.
• A roller cart, adjustment wrench, and a dust cover is provided with each unit.
