GRIP-BAR

GRIP-BAR

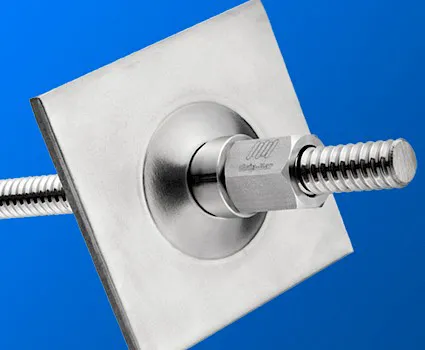

A corrosion resistant anchor bar, Grip-Bar® is a unique high bond, high strength Stainless Steel threaded bar for Rock Anchors, Soil Nails, Masonry and Concrete Fixing. The Grip-Bar® Anchor System has been developed to service Civil Engineering and Geotechnical applications.

BENEFITS

• High strength thread rolled stainless steel bars
• Fast thread bar with self cleaning thread
• Proven high bond strength
• Easily cut on site without any damage to thread form
• Unique corrosive resistant product
• 6 metre standard lengths
• Can be cut or joined to size
• Superior ductility for seismic activity

APPLICATIONS

• Rock bolts
• Soil nails
• Building and bridge cross tie
• Ground anchors
• Holding down bolts
• Coastal defence walls, slopes and slabs
• Ancient monuments
• Docks and harbours

MANUFACTURING PROCESS

The high strength Grip-Bar® is made from cold drawn bar feedstock. It benefits from superior strength, whilst retaining the elevated ductility associated with stainless steel. Grip-Bar® is manufactured in 6m fully threaded lengths or by special order, with a bespoke thread on the ends of the bar. All the Grip-Bar® range of threaded products utilise the thread rolling principle, which benefits from not removing any material from the bar whilst generating the coarse thread. It is in principle a cold forging process, and hence the grain flow caused by this process improves the strength of the thread relative to that of a cut thread of the same size.
