Stacker Conveyor Systems

A stacker conveyor is essential for stockpiling aggregates of any kind. More efficient than wheel loaders or screw conveyors, with less dust and reduced product damage, a stacker conveyor moves up to 1,200 tons per hour of material into a stockpile.

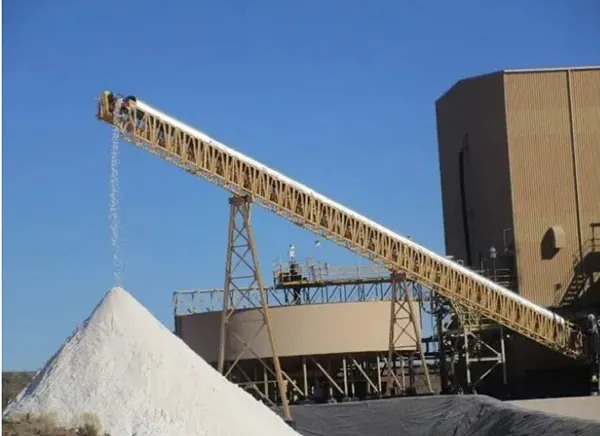

A stacker conveyor consists of a conveyor installed into a rigid truss. Inclined upwards by as much as 20°, this raises material from the base and discharges it onto the top of the stockpile. (Steeper inclines are possible but depending on material properties, may require specific design of the conveyor belt.)

Three widely used variants of the basic stacker conveyor are:

• Radial stacker conveyor
• Telescoping stacker conveyor
• Telescoping radial stacker conveyor
