Pressure Transmitter

Pressure Transmitter

Details

Applications

• Mechanical engineering
• Machine tools
• Process control and automation
• Hydraulics and pneumatics
• Pumps and compressors

Special Features

• Piezoresistive sensor and thin-film sensor technology
• Pressure ranges from 0...20inWC to 0...15,000 psi
• Non-linearity: ≤±0.5% BFSL (≤±0.25% available)
• Signal output: 4-20 mA, 0-10 V, 0-5 V, others
• Electrical connections: DIN 175301-803 A and C, M12x1, 6 ft. cable, others
• Pressure connection: 1/4 NPT, 1/2 NPT, SAE #4, others available

Description

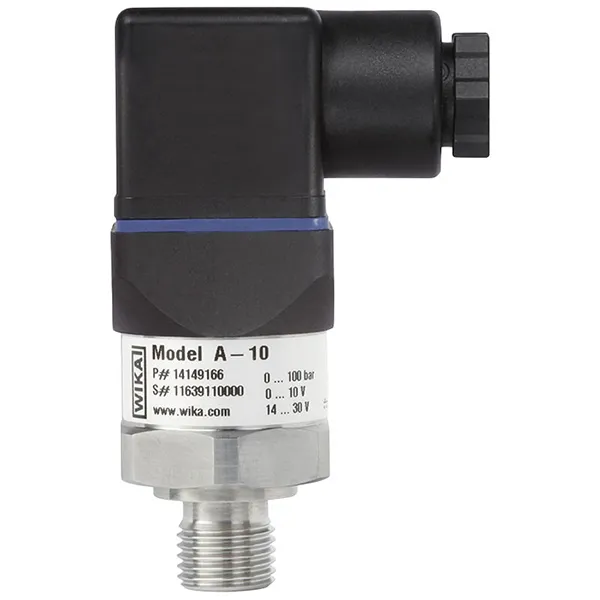

The WIKA A-10 pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications.

Performance and reliability is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long term reliability of the A-10.

Primary applications include process control and automation, hydraulics, pneumatics and machine controls.
