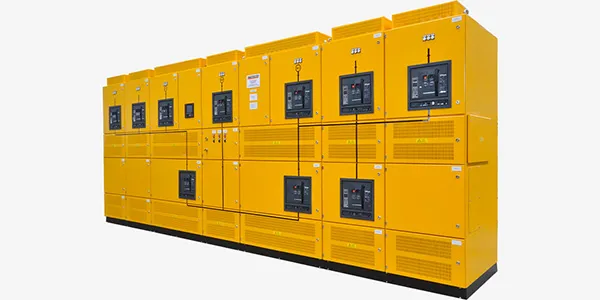

LV Switchgear
As a Schneider Electric Authorised, StruxureWare™ System Integrator, EcoXpert Critical Power Master, we are able to custom design and integrate, highly functional systems to the highest standards for StruxureWare™ Power Management Expert.
We manufacture industry leading LV switchgear in all configurations and forms of separation in accordance with BS EN 61439-2. Standard designs are certified up to 6300A 100kA RMS Sym for 1 sec.
Our range of switchboards are all custom-built in a modular design with fully welded construction designed to any configuration to suit site requirements. All equipment is manufactured and tested in-house.
All aspects of the design are detailed in 2D and 3D CAD options. Sub-distribution switchgear is available to the same specification.
Standard and bespoke arrangements
Fully welded construction
2mm - 2.5mm steel / galvanised
5mm aluminium gland plates
All forms of segregation
Fully type tested assemblies to BE EN 61439-2
Ingress protection to IP31
Any colour from the RAL range
Top or bottom cable/bus-duct entries
Front or rear cable access
Multiple sections
100mm standard plinth
All aspects of the design are detailed in 2D and 3D CAD options. Sub-distribution switchgear is available to the same specification.
Switchboard Features and Options:
All device types including ACB’s, MCCB’s, MCB and Fusewitches.
Fixed, plug-in or withdrawable devices.
Devices from all the main manufactures including ABB, Schneider, Socomec, Terasaki plus other manufacturers ranges.
Comprehensive range of metering from Carlo Gavazzi, Janitza, Rayliegh, Schneider, Socomec plus other manufacturers.
Supply Authority CT Chambers integral to the footprint.
Thermographic viewing facilities.
Power mimic lines.
Electronic surge protection.
Double-rated neutral busbars.
Ingress protection ratings up to IP65.
