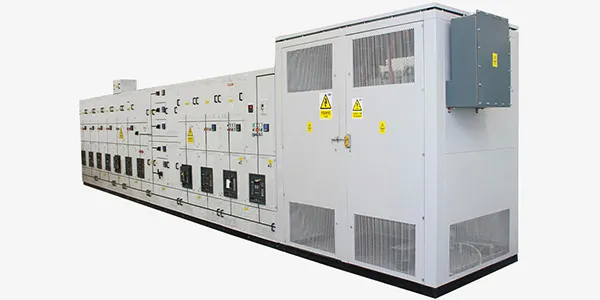

Package Substations
Package Substations manufactured to the same high standard as our switchboards offering a complete MV/LV package which can also incorporate MV switchgear either standalone or close-coupled to the LV Equipment for installation within plant rooms or our purpose-made containerised solutions.
MV Incomer options of ring main units (RMU)
Incorporating cast resin transformers up to 4MVA
Air-cooled or force ventilated to increase output by up to 40%
Fully type tested assemblies to BE EN 61439-2
All transformers to the latest EU high energy efficiency directive EN 50541-1
MV cable options top or bottom
Voltages up to 33kV
Ingress protection to IP2X
Transformer housing Castell interlocked
Reduced footprint design
Maintenance access
Package Substations Features and Options:
Ingress protection ratings up to IP3X
Transformers with either copper or aluminium windings
Transformers from all the main manufactures including ABB, Schneider, SGB, Tesar, TMC, Zuchinni Legrand plus other manufacturers ranges
Routine full-factory witness testing
Full-heat rise testing available in dedicated enclosures
