AmbaFlex Manufacturing Inc

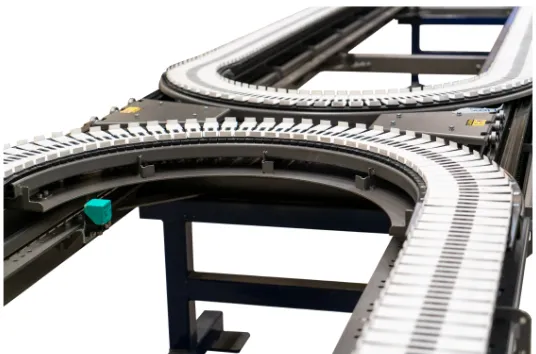

AccuVeyor AVL-Series

The AccuVeyorAVl is a fully dynamic accumulator suited for various applications. The dynamic effect allows for the absorption and release of items between processes without any interruption.

The AccuVeyorAVl is based around ONE flexible conveyor belt. This belt runs through a conveyor frame. it consists of two u-shaped conveyor segments on the top and two return belt segments underneath. The top U-shape is the effective accumulator and conveys the product from the entrance to the exit. The second one underneath is used to store any unused conveyor belt. When accumulating the U-shaped segment moves along the track and with it increases or reduces the accumulation length, just like a trombone.

Suitable for goods:

small cartons, pouches, sealed cups, flow packs, cups, jars, trays

Details

• Belt width range: 140, 400, 600 mm | 5.5, 16, 24"
• Multi-belts: patented ONE-belt non-touching accumulation system
• Load range: up to 15 kg/m | 10.2 lb/ft
• Speed range: up to 42 m/min | 138 fpm
• Accumulation length: 40 m | 131 ft
