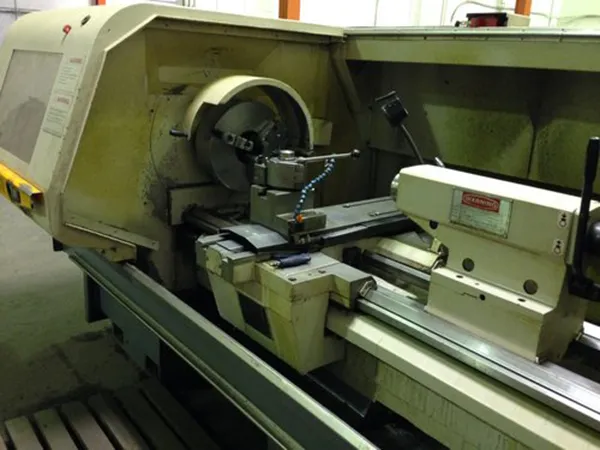

TUR630AMN
Year of Manufacture 2008
Serial No 80571 Control Siemens Sinumerik 840D sl ShopTurn
Chuck 16” 3 Jaw Steel Bison 435-367 2pc Jaws
Tool Post Quick Change Tool Post
CAPACITY
Distance between centres 3000 mm
Swing over bed 630 mm
Swing over saddle 370 mm Max.
Weight between centers (without Steadies) 2000 kg Max.
Weight in chuck only 600 kg
HEADSTOCK
Number of spindle ranges 2
Top spindle speed ranges l:2-430,ll:200-1850 rpm
Spindle nose (DIN 55029) 2 X D 1-11 camlock
Spindle inner taper 150 mm
Spindle bore 140 mm
Main drive moter power 18,5 kW Max.
Turning torque 2800 Nm Front bearing 250 mm
SADDLE
Cross slide travel X-axis 390 mm
Rapid travel Z-axis 8 m/min
Rapid travel X-axis 8 m/min
Feed force transverse 10 KN
Feed force longitudinal 15 KN
Ball screw Z-axis 40 mm
Ball screw X-axis 32 mm
Carriage length bearing on bedways 610 mm
Width of cross slideways 230 mm
QC Toolpost Type Multifix c size
TAILSTOCK
Socket in tailstock spindle 5 MT
Tailstock spindle diameter 90 OR 100 mm
Tailstock spindle travel-manual: 200 mm
MOTORS ON THE MACHINE TOOL
Main drive motor rating at Nn = 1000 rpm/min :
S1 12 kW
S6-60% 15 kW
S6-40% 18.5 kW
Feed drive motor in X axis:
