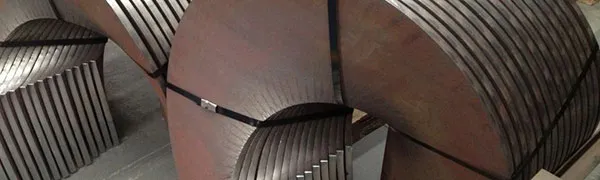

SECTIONAL FLIGHTS

Sectional flights are less standardised in terms of material thickness, pitch, material type and diameter than the helicoid flights, offering a larger product range. Sectional flights are individually manufactured by using a cut-out circular plate to the required diameters. Then, using specialised pressing equipment, the plate is formed into helical sections, with varying levels of thickness, diameter and pitch.

Sectional flights are made in:

• Mild steel

• Stainless steel

• Wear resistant material

• Both left hand and right hand orientation

Please refer to the Enquiry Form for specific queries or requests about our screw conveyors.
