Horizontal Boring Mill- 3-axis

Horizontal Boring Mill- 3-axis

Horizontal Boring Mill- 3-axis

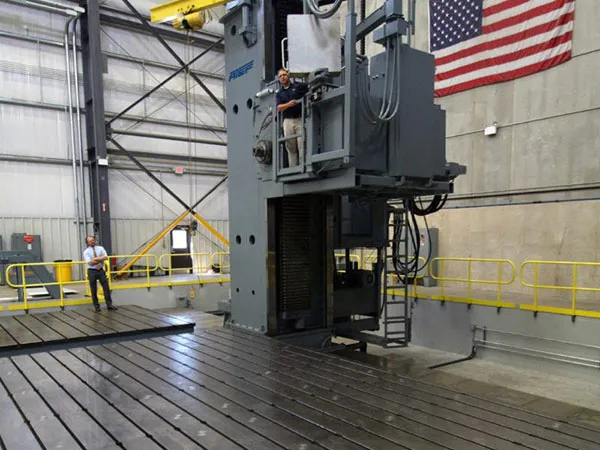

The horizontal boring mill 3-axis on AT&F’s campus in Cleveland provides AT&F customers access to all functions of machining – milling, boring, drilling, and threading. AT&F’s commitment “We Invest In Customer Success™” is illustrated by its turnkey manufacturing services.

HBM 3-axis Specifications

Axis Travel

  • X-axis 40 ft (12m)

  • Y-axis 14 ft (4.3m)

  • Z-axis 6 ft (1.8m)

Machine Specs

  • 75HP Spindle Drive

  • 2000 RPM Max

  • 500 lbs Torque

  • Quill Dia. 15.75 in (400 mm)

Machine Beds

  • Indexing Table 12 ft x 12 ft (3.7 m x 3.7 m)

  • Floor Table 26 ft x 16 ft (8 m x 4.8 m)

CAD/Programming System

  • Fanuc and Fagor CNC controllers

  • Mastercam X7

  • Autodesk Inventor 2016
