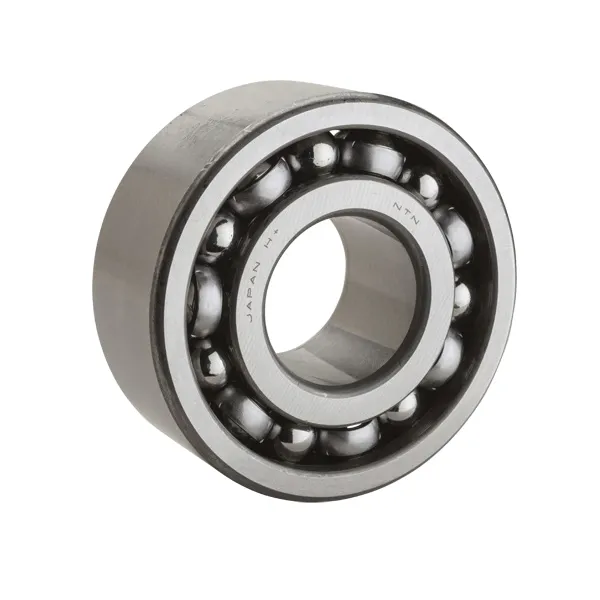

Angular Contact Ball Bearings NTN 3208C3
Angular Contact Ball Bearings NTN 3208C3
NTN 3208C3 32 Series Round Bore Angular Contact Ball Bearing With Filling Slot, 40 mm Dia Bore, 80 mm OD, 2 Rows, 30.2 mm W, 32 deg, 50500 N Load
- Manufacturers: NTN
- Brand Name: NTN
- PN: NTN3208C3
- MPN: 3208C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Availability: Contact Us For Availability
DESCRIPTION
Double Row Angular Contact Ball Bearings have an inner and outer ring with a double raceway. The two rows are so related that the contact angle is similar to a pair of back-to-back single row bearings. The 5200 and 5300 series offer continuous races and can carry thrust loads in either direction. Since the 3200 and 3300 series have filling slots, it is necessary to mount them with the thrust load acting against the unnotched face of the rings.
NTN Angular Contact Ball Bearing, Round Bore, Series: 32 Series, 40 mm Bore Dia, 80 mm Outside Dia, 2 Rows, 30.2 mm W, 32 deg Contact, Open Closure, 50500 N, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 4900 rpm Grease/6600 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
Bearing Material : High Carbon Chrome Steel
Cage Material : Pressed Steel
Closure Type : Open
Maximum Speed : 4900 rpm Grease/6600 rpm Oil
Series : 32 Series
Temperature Rating : -40 to 120 deg C
Type : Round Bore
Bore Diameter : 40 mm
Outside Diameter : 80 mm
Number of Rows : 2
Width : 30.2 mm
Contact Angle : 32 deg
Load Capacity : 50500 N
FEATURES
C3 radial clearance greater than normal
ISO class 0 precision rating
46000 N dynamic/50500 N static
