GALVANIZED
GALVANIZED
Outstanding surface quality is vital but we’re not just another pretty face. Look a little deeper and you’ll discover superior chemistries, including Advanced High Strength Steels (AHSS). The Big River Steel galvanized line is where we push the boundaries of ‘flex’ in our Flex Mill® – in a good way of course.

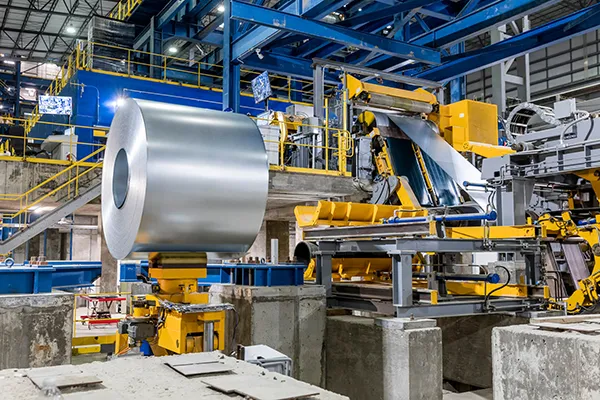

Using either a full hard cold rolled or a hot rolled pickled band, we pass each cleaned coil through the zinc pot and air-knives then proceed to add oil and/or chemical treatment for rust passivation. Finally, it’s on to tension leveling and temper passing to produce galvanized steels with the surface quality needed for surface-critical applications. This process of rust passivation, tension leveling, and temper passing is all achieved through an in-line process for speed and responsiveness.
To give us even more flexibility, we engineered our galvanized line to double as our continuous anneal line for producing Advanced High Strength Steel (AHSS) by sliding the zinc pot out of the line. This provides the ability to produce AHSS in both coated and cold rolled. We even left flexibility in our floorplan to add equipment for other coated products in the near future.
Capabilities
Grades shown are representative of the capabilities of Big River Steel’s equipment. Actual grade and size capability of each material may vary in actual production. Cross-section properties may impact max and min capabilities. Please send inquiries to sales@bigriversteel.com.
ULTRA LOW CARBON, INTERSTITIAL-FREE (IF) STEEL
– ASTM A653 Latest Edition – DDS – EDDS
– SAE J2340 – 180 Type A, B – 210 Type A, B
