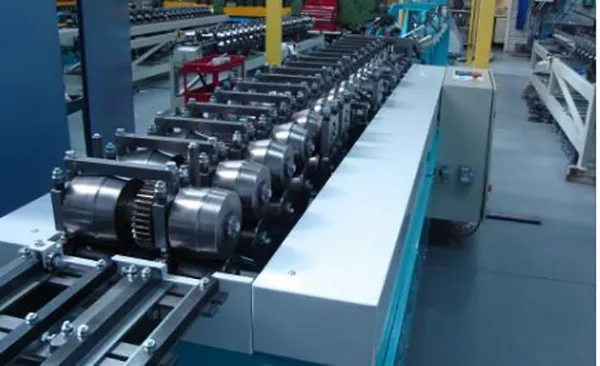

Fixed Sideplate Rollforming

Fixed Sideplate machines provide a durable, cost effective means of rollforming sections up to 60mm high from most metals up to 3mm thick at speeds of up to 35m/min. They can also accommodate up to three different sets of tooling at the same time. Product width adjustments can be made without having to change tooling.

The number of forming stations vary from six for the simplest profiles through 24 and beyond for complex profiles. For blank-fed operations the minimum component length is limited to at least twice the horizontal roll centres. It can be reduced by 50% by using inter-station guides.
