CaptiveAire

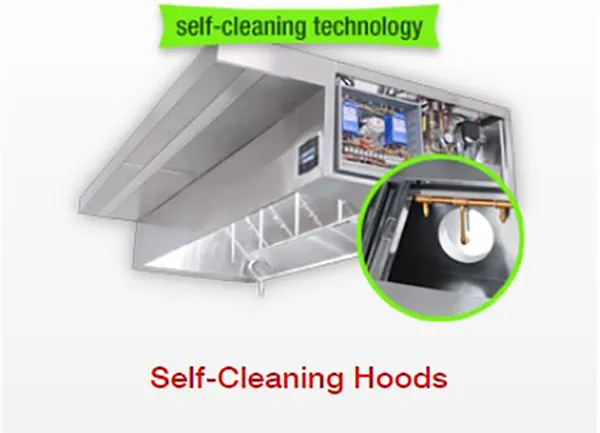

Fully Integrated Self-Cleaning Hood

Features & Benefits

• Fully automatic operation
• Hood fabricated from 100% Stainless Steel
• Drip-less nozzles with internal strainer
• Easily serviceable
• Adjustable wash duration (factory set at 3 minutes)
• 3/4", 1", 1.5" NPT Pipe Water Inlet connection

• 1 1/2" NPT Pipe Water Drain connection
• Standard riser spray nozzle for duct cleaning
• Water usage is 0.70 GPM per foot of hood length
• Upgrade to the CORE Fire System available
• High Efficiency Grease Filtration

Available Options

Hot Water Option

The Hot Water option automatically cleans the hood plenum after the cooking operations are completed for the day or via schedule. By washing the plenum while the hood is hot, the effectiveness of the cleaning increases. For a standard application, surfactant will be injected into the wash for one second, every one minute of the cycle. The wash time, the surfactant injection interval, and the surfactant duration is adjusted to meet the needs of every application.

Integral Utility Cabinet

Integral Utility Cabinet option includes the manifold and electrical controls directly mounted into the cabinet on either end of the hood. All piping and wiring are done in the factory to minimize labor at the job site. The manifold size available is 3/4" and covers up to 48 feet of hood, depending on operational water pressure.
