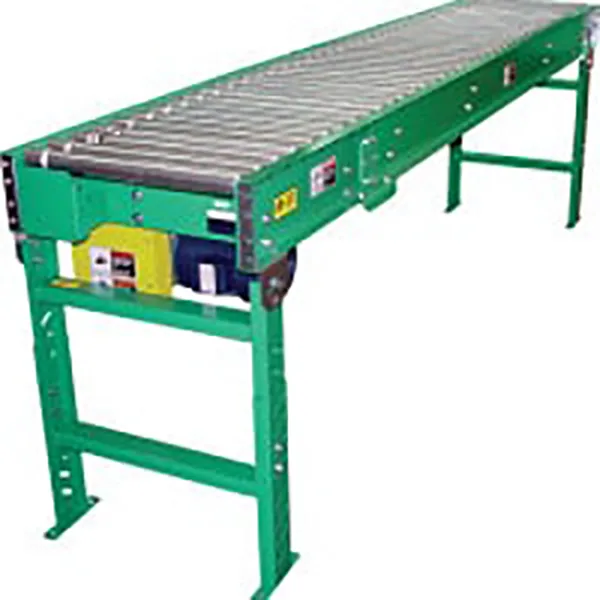

Live Roller or Accumulation

Live Roller or Accumulation

Live Roller or Accumulation

Live Roller / Accumulation conveyors include: Straight Sections, Curved Sections, 30° Spur, and 90° Spur Curves.

At Ingalls Conveyors, we manufacture, design, and re-manufacture live roller / accumulation conveyors. We are also a direct distributor for several major conveyor manufacturers and have the unique ability to save our customers a substantial amount of money by integrating new conveyor components with refurbished components as appropriate. Our refurbished conveyors come with an AS NEW” warranty.

Please call 1-800-826-4554 or email [email protected] to contact one of our engineering staff members about your specific live roller / accumulation conveyor requirements.

Standard Specifications:

  • Driving Belts – 3⁄16″ diameter round urethane O” rings from drive shaft to tread rollers.
  • Bed – 7″ x 1-1⁄2″ x 12 gauge powder painted formed steel channel frame with heavy duty cross braces and splice plates.
  • Rollers – 1.9″ diameter x 16 gauge galvanized steel tread rollers with 7⁄16″ hex shaft and sealed, greased for life bearings, spaced on 3″ centers.
  • Floor Supports – Adjustable 31-1⁄2″ to 45-1⁄2″ from floor to top of tread roller. One support supplied at each end of conveyor and at each bed joint.
  • Drive – 2 foot module with motor and reducer.  Drive module will be bolted to intermediate section.
  • Drive Shaft – 1″ diameter steel shaft, driven by motor and reducer, runs full length of conveyor. Chain coupling supplied at bed joints to couple sections together.
  • Drive Spools – Delrin spools located on drive shaft supplies driving power to tread rollers.
  • Drive Shaft Bearings – Sealed, prelubricated, self aligning, precision ball bearings on drive shaft.
  • Speed Reducer – C-Face mounted, heavy duty worm gear reducer.
  • Motor – 1⁄2 HP 230/460/3-60 TE motor.
  • Drive Guard – Perforated metal guard full length of conveyor covers drive shaft and other moving drive components.
  • Conveying Speed – 60 FPM constant.
  • Capacity – 15 lbs. per tread roller maximum.

Applications / Features:

  • Low pressure accumulation
  • Clean room installation
  • Economical transportation conveyor
  • Assembly conveyor
