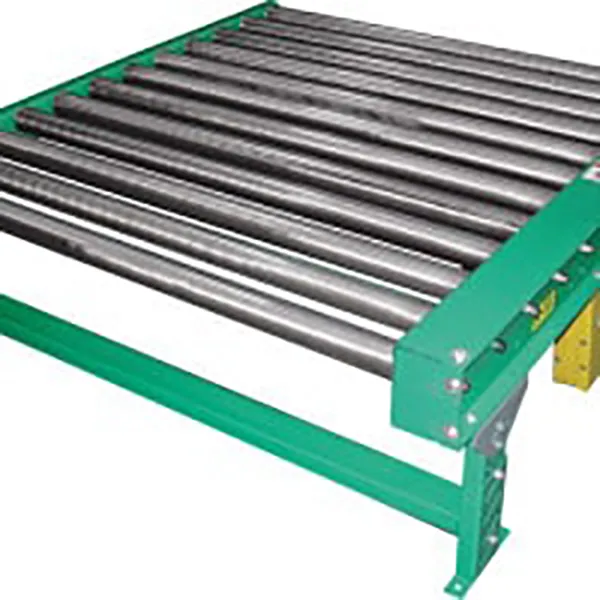

Pallet Handling
Pallet Handling
At Ingalls Conveyors, we manufacture, design, and re-manufacture pallet handling conveyors. We are also a direct distributor for several major conveyor manufacturers and have the unique ability to save our customers a substantial amount of money by integrating new pallet handling conveyor components with refurbished pallet handling components as appropriate. Our refurbished conveyors come with an “AS NEW” warranty.
Applications / Features:
- Oily conditions
- Pallets
- Drums
- Positive drive
Optional Colors available at extra cost.
Standard Specifications:
Bed – Conveying surface width 28″, 34″, 40″, 46″, 52″, 58″, and 64″. 2-1⁄2″ diameter x 11 gauge and 2-5⁄8″ x 7 gauge steel tread rollers, 11⁄16″ hex shafts. No. 50 chain is used on 5″, 7-1⁄2″, 10″ roller centers only. No. 60 chain is used on 6″, 7-1⁄2″, and 12″ centers only. Tread rollers mounted in 4″ and 6″ x 4 gauge powder painted formed steel channel frame. Sections are bolted together with butt couplings and floor supports.
Drive Chain – No. 50 roller chain or No. 60 roller chain can be used with either the 251CRR or 267CRR as above.
Floor Supports – Heavy duty supports are adjustable 30-1⁄4″ to 40″ from floor to top of roller. One support at every bed joint and each end of conveyor.
Center Drive – Mounted underneath conveyor, center of section. Can be placed most any where in conveyor length.
Bearings – Sealed, prelubricated ball bearings.
Chain Guard – Lower chain guard is mounted on bottom of roller frame, and upper chain guard is mounted above roller frame to totally enclose drive chain.
Speed Reducer – C-Face mounted heavy duty worm gear reducer.
Motor – 3⁄4 HP 230/460-3-60 TE motor.
Speed – 30 FPM.
Capacity – Maximum load per linear foot of conveyor; 300 Ibs. with supports on 10′ centers, 1000 Ibs. with supports on 5’0″ centers.
