Kerotest Manufacturing Corporation

Kerotest Manufacturing Corporation

7734 LA-1, Mansura, LA 71350, United States

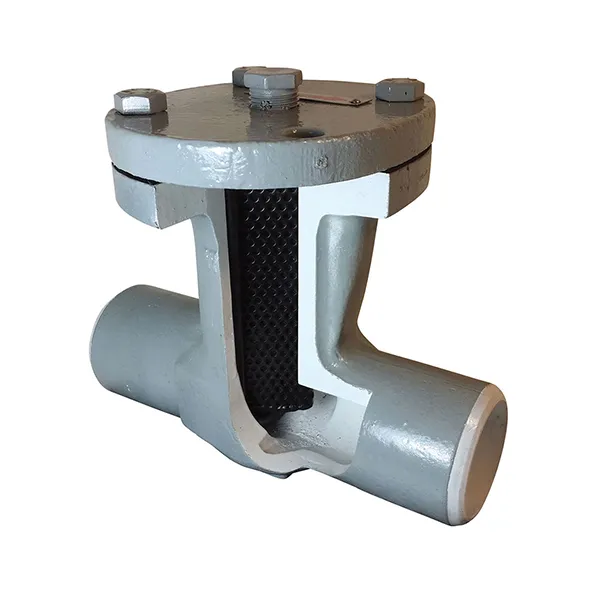

These T-Strainers, which provide up to 30 percent larger basket area, are manufactured of carbon steel to ensure strength, precision and long-life. Available in standard sizes from 1-inch through 6-inch, ANSI 150/300 pound, Kerotest can also deliver t-strainers in larger sizes as needed.

Kerotest T-Strainers are interchangeable in valves with Standard ANSI B16.5 & 16.10 end-to-end dimensions. They also feature an elastomeric basket seal that eliminates potential leakage between the basket and body, as well as a reversible basket that readily accommodates reverse flow applications.


Body: Steel, ASTM A-216 Gr. WCBCover: Steel, ASTM A36Bolts: SAE Gr. 8 Carbon SteelCover Seal: Buna-NBasket: 300-Series Stainless Steel 1/8” perforation on 3/16” centersMesh: Optional – 40 Mesh from stock (300-Series Stainless Steel)Connections: weld end, weld-by-flange, flange-by-flange, screwed

Options include:

Short weld ends

Flat faced flanges

Screwed ends

Special coatings

Viton™ trim
