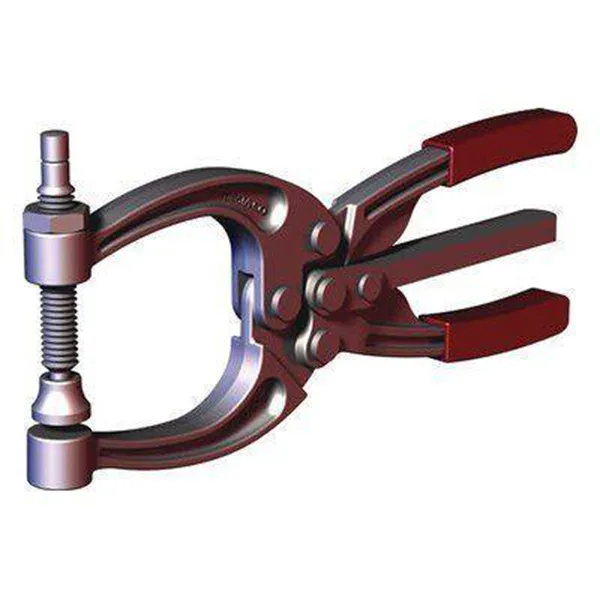

ACTION CLAMP

Features and Specifications: 462 Squeeze Action Clamp

Drop forged alloy steel components for exceptional strength

Two-waytrigger release for fast and easy opening of clamp

Supplied with single adjustable spindle

Model No.: 462

Maxmum Holding Capacity (N): 3,110

Maximum Holding Capacity (lbsf): 700

Jaw Width (mm): 44.5

Jaw Width (in): 1.750

Jaw Depth (mm): 69.0

Jaw Depth (in): 2.720

Available: Yes

Standard Material: Steel

Maximum Clamping Thickness (mm): 29.5

Spindle Part Number: 468206-M/2102056-M

Spindle Thread: M10

Supplied?: Yes

Number Of Adjustable Spindles: 1

Features: Two-way trigger release

Product Type: Plier Clamp

EDP No.: 54620

Max. Exerting Force: 375lbs

Weight (kg): 0.51

Weight (lb): 1.12
