CNC Machining

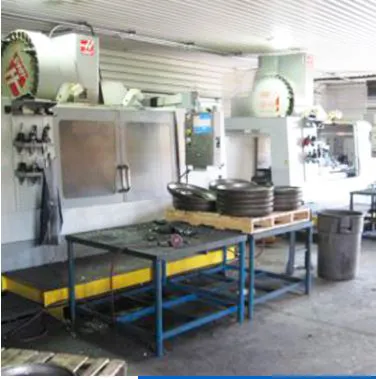

NNM Manufacturing offers CNC machining services, with both CNC turning machine and CNC milling capabilities. With our CNC turning and CNC milling services, equipped with radial drills and engine lathes, we are capable of producing rounded, rectangular, or other desired profiled parts and products at custom diameters with the ability to round, cut, groove, drill, thread, and countersink to your desired dimensions and specification to fit your unique application.

No matter the size or quantity of the order, NNM Manufacturing works with our customers to provide timely and cost-effective CNC machining services. We have experience producing custom parts such as wheel disks and manway covers for customers in rail car manufacturing, agriculture, construction, and across a variety of other industries.

CNC and conventional machining capabilities include, but are not limited to:

• Mitsubishi 3 axis CNC machine tool center with 28 ATC. 45 taper Cat V flange tool holder. 27″ X 60″ table.
• Pratt and Whitney single spindle 3 axis CNC machine tool center. Switchable tape reader, absolute incremental programming. Linear and circular interpolations. Tool length and diameter compensations 29″ X 60″ work bed. 3500 lb. work capacity.
• Giddings & Lewis turret vertical lathe; 32″ diameter table, 48″ swing, side tool holder, 48″ under the bridge.
• Ikeda radial arm drill; 13″ column X 4′ arm; #5 MT.
• Carlton radial arm drill: 11′ column X 4′ arm; #5 MT.
• Tacci engine lathe series 41; 32″ swing; 20″ over bed; 20 HP, with digital readout.
• HAAS VF-6 VERT. MACHINING CENTER HAAS Control Table Size 64” x 32”, X-Axis Travel 64”, Y-Axis Travel 32” Z-Axis Travel 30”, Main Motor 20 HP, Spindle Speeds 7,500 RPM, Tool Positions…24 ATC—(Side Mount), Spindle Taper……#-40
