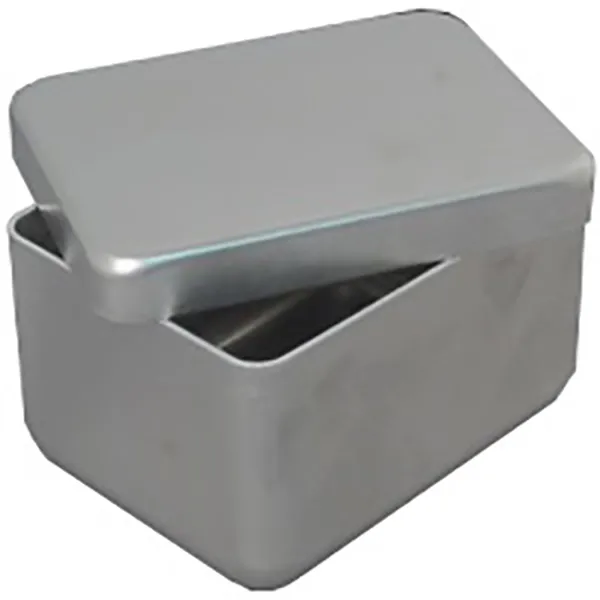

Specifications

NORPIN PART NUMBER

ILT104-324A-XXX

OUTER WIDTH - W

1.093 in

27.7622 mm

OUTER LENGTH - L

3.781 in

96.0374 mm

MINIMUM HEIGHT - H

0.188 in

4.7752 mm

MAXIMUM HEIGHT - H

0.500 in

12.7 mm

BOTTOM RADIUS- BR

*Inside Dimension

0.062 in

1.5748 mm

SIDE RADIUS - SR

*Inside Dimension

0.188 in

4.7752 mm

MATERIAL THICKNESS - T

0.032 in

0.8128 mm

STANDARD TOLERANCES - W, L & H

±0.015 in

±0.381 mm

AVAILABLE MATERIALS

*Additional Thicknesses Available

• Aluminum

• Brass

• Copper

• Cold Rolled Steel

• Stainless Steel

• Other materials available upon request.

COVER/LID TYPES

• OLT - Outside Lid Tight

• OLL - Outside Lid Loose

• OLG - Outside Gasketed Lid

• ILL - Inside Lid Loose

• ILT - Inside Lid Tight

VALUE ADDED SERVICES AVAILABLE

• CNC Machining

• Punching

• Hardware & Flange Installation

• Full Line of Surface Finishes Available

• Additional Precision Fabricated Parts

• Tooling at little to no cost

• Welding & Brazing

• Annealing & Heat Treating

• Abrasive Blasting & Bead Blasting

• Fluorescent Penetrant Inspection

SURFACE FINISHING SERVICES

• Chromic Anodize Type 1

• Sulfuric Anodize Type 2

• Hardcoat Anodize Type 3

• Conversion Coatings

• Brush Cadmium Plate

• Chromate of Magnesium

• Nickel Plate(Sulfamate)

• Nickel Cadmium Plate

• Silver Plate

• Zinc Plating

• Tin Plate (Bright)

• Cadmium Plate

• Passivation

• Copper

• Paint & Primers

• Powder Coating

• Silk Screening

• Laser Etching
