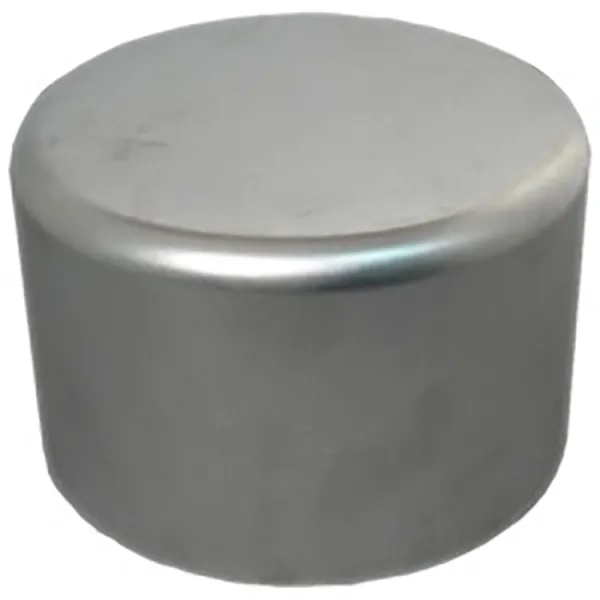

Norpin Standard Round Specifications

Norpin Standard Round Specifications

Norpin Standard Round Specifications

Standard Catalog Enclosures are plain and without surface finishes.

Any enclosure height within the range of Minimum & Maximum Height listed below is available without additonal modifications.

Additional modification services, surface finishes & materials are available upon request.

Standard Rectangle

Specifications

NORPIN PART NUMBER

NC028A-XXX/AL

OUTER DIAMETER- W

0.875 in

22.225 mm

MINIMUM HEIGHT - H

0.250 in

6.35 mm

MAXIMUM HEIGHT - H

1.250 in

31.75 mm

BOTTOM CORNER RADIUS- BR

*Inside Dimension

0.015 in

0.381 mm

MATERIAL THICKNESS - T

0.020 in

0.508 mm

STANDARD TOLERANCES - W, L & H

±0.015 in

±0.381 mm

AVAILABLE MATERIALS

*Additional Thicknesses Available



  • Aluminum



  • Brass



  • Copper



  • Cold Rolled Steel



  • Stainless Steel



  • Other materials available upon request.

COVER/LID TYPES



  • OLT - Outside Lid Tight



  • OLL - Outside Lid Loose



  • OLG - Outside Gasketed Lid



  • ILL - Inside Lid Loose



  • ILT - Inside Lid Tight

VALUE ADDED SERVICES AVAILABLE



  • CNC Machining



  • Punching



  • Hardware & Flange Installation



  • Full Line of Surface Finishes Available



  • Additional Precision Fabricated Parts



  • Tooling at little to no cost



  • Welding & Brazing



  • Annealing & Heat Treating



  • Abrasive Blasting & Bead Blasting



  • Fluorescent Penetrant Inspection

SURFACE FINISHING SERVICES



  • Chromic Anodize Type 1



  • Sulfuric Anodize Type 2



  • Hardcoat Anodize Type 3



  • Conversion Coatings



  • Brush Cadmium Plate



  • Chromate of Magnesium



  • Nickel Plate(Sulfamate)



  • Nickel Cadmium Plate



  • Silver Plate



  • Zinc Plating



  • Tin Plate (Bright)



  • Cadmium Plate



  • Passivation



  • Copper



  • Paint & Primers



  • Powder Coating



  • Silk Screening



  • Laser Etching
