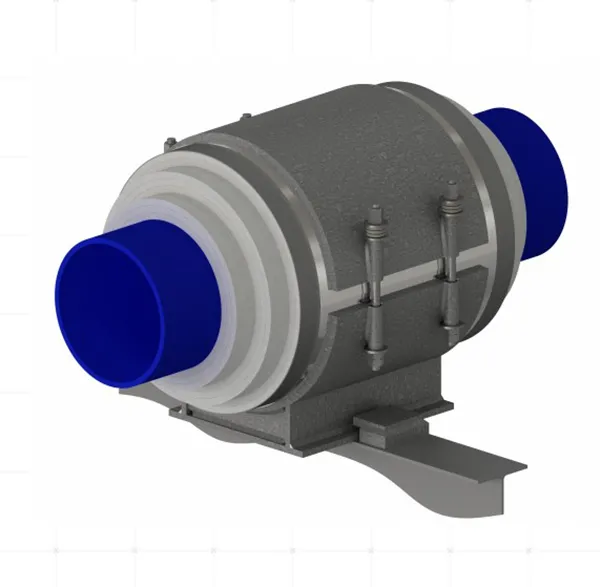

CryoWrap Guided Support

Applications & Features:- Temperature range to -460 Deg F to 195 Deg F- Higher temperature applications available- Teflon®/2B SS 304 slide plates on shoe and supporting steel on sizes 26” and larger- Design loads based on a safety factor of 5- A36 steel construction

- See technical specification RCS-750- Steel finish available in galvanized finish or painted- Increased loading capability available. Contact Rilco for additional information- Support constructed in accordance with ASME B31.1, B31.3 and MSS-SP58- A307 or A193 B7 plated bolts/studs- Test results available upon request

Ordering Instruction-Please Specify:-Model Number-Nominal Pipe Size-BOP-Support Length-Vertical Load
