Rilco Manufacturing Company

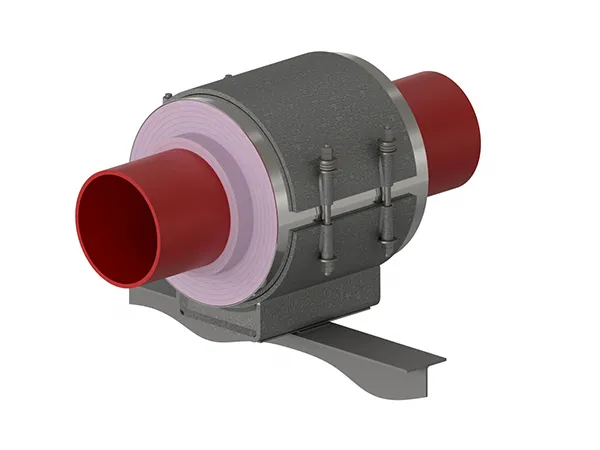

PyroWrap Resting Support

Applications and Features
- Temperature range from -40 Deg F to 1200 Deg F
- Higher temperature applications available
- Teflon®/2B SS 304 slide plates on shoe and supporting steel
- Design loads based on a safety factor of 5
- A36 steel construction
- See technical specification RHS-750                                                                                                                 - Test results available upon request
- Steel finish available in galvanized finish or painted
- Increased loading capability available. Contact Rilco for additional information
- Support constructed in accordance with ASME B31.1, B31.3 and MSS-SP58
- A307 or A193 B7 plated bolts/studs                                                                                                           Ordering Instructions - Please Specify:
- Model Number
- Nominal Pipe Size
- Insulation Thickness
- BOP
- Support Length
- Vertical Load
- Movements
