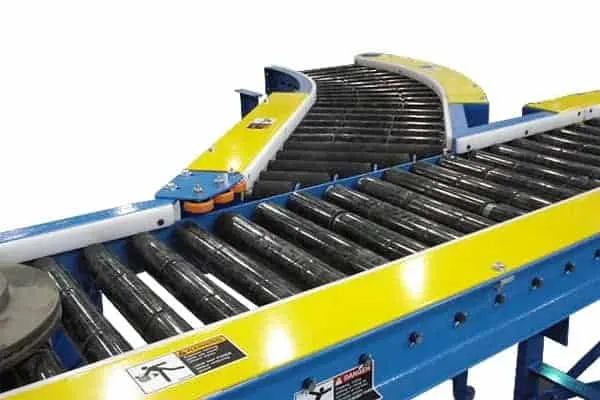

Chain Driven Live Roller Conveyor (CDLR Conveyor)
Chain Driven Live Roller Conveyor (CDLR Conveyor)
WHAT IS A CHAIN DRIVEN LIVE ROLLER CONVEYOR?
CDLR conveyor systems are the workhorse of the conveyor range, and one of the most common floor-supported styles in use. Chain driven live roller conveyor systems (CDLR) are ideal for transporting medium to heavy loads at controlled speeds for many industries. Typical loads that CDLR conveyor moves include loaded pallets, tires, drums and totes. When used to transport pallets, they are frequently known as pallet roller conveyor systems.
They are easy to maintain, and can take a lot of abuse without damage. Rollers may be mild steel, galvanized or stainless steel for special applications. Where impact loads are possible, thicker gauge roller material and upgraded bearings will be specified.
Technical Specifications:
Depending upon the product weight and the product being conveyed, different roller capacities will be utilized to handle the load. Pallet roller conveyor systems are typically using 2.5″ or 3.5″ diameter rollers. Product weights typically ranges from 80 lbs. up to 25,000 lbs. Some typical configurations of chain driven live roller conveyor are:
- Positive Drive
- Rollers Diameters: 1.9”, 2.5”, 3.5”, 4” and 5”
- Effective widths from 3” -120” in any increment
- Lengths from 1 ft. – 12 ft.
- Reversible with speeds ranging from 5 -150 FPM fixed or variable
- Built to order – modifications easily made
