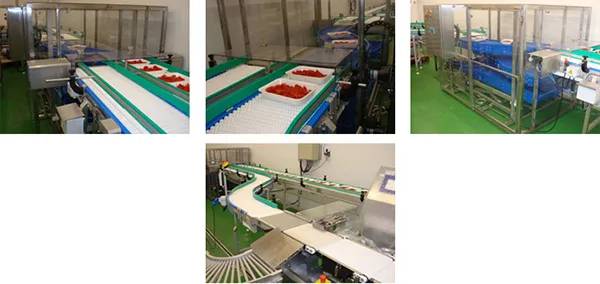

Merging Conveyor Systems

McCormick (UK) Ltd, based in Haddenham Aylesbury are the global leaders in the manufacture, marketing and distribution of seasoning in the food industry. You may have heard of Schwartz, their flagship brand, and it’s likely you enjoy their products daily. They selected UPM to design, install and commission a product handling system for all stages of sachet production. This was done at a total rate of 120/min from two filling machines, through to final cartoning and palletising.

Full automation is achieved via a PLC touch screen control with HMI operator interface. All programming and control build supplied in house by UPM allows ease of liaison with McCormick engineers for fine-tuning the system.

Sachets from two bag fillers are fed via individual belt conveyors to a Merging Station incorporating sensors for detecting incoming sachets and to energise a pneumatically operated gate to eliminate any product overlap. Sachets are then fed separately at a variable rate to an Equaliser to distribute product evenly in the sachet and then on to metal detection with an automatic reject station prior to being fed via two further belt conveyors having variable speed control for correct alignment to the carton erector and finally to the palletiser.

Frank Hentschel of McCormick expressed satisfaction with UPM Conveyors particularly the on-site engineers who performed the installation with very minimal disruption and provided an excellent service.
