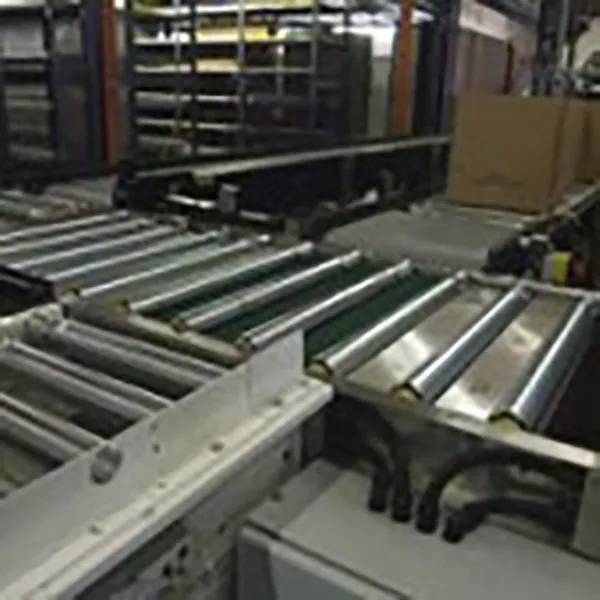

Roller Conveyors
Roller Conveyors
Gravity conveyors are an economical and simple form of transporting products from one point to another. This requires minimal effort as is achieved by using the force of gravity to move materials over a downward path. Items with a sufficient weight can easily move unassisted downwards, usually on an inclined runway.
FDA Plastic, Stainless steel and zinc rollers are available in 30mm, 40mm & 50mm diameters on centres to suit the application.
Line Shaft Driven Roller Conveyors
Line shaft driven roller conveyors are a more advanced form of transporting products from one point to another. As the name suggests, they are powered by a shaft beneath rollers. This type of conveyor is suitable for lighter products, up to 50kg such as cardboard boxes and tote boxes.
Incorporates 50 mm Diameter Rollers fitted at 75 – 150 mm pitch Giving 5Kg Drive Per roller
Available in widths 300mm rising in 50mm increments to 750mm
Low pressure accumulation
Power up to 30 metres from one 0.37Kw drive unit
Also available in stainless steel
