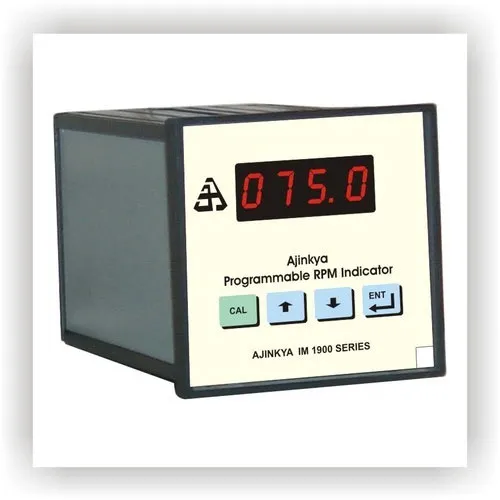

RPM Indicator Remote Slave Display

RPM indicator remote slave display IM1901T is a series of RPM indicators. It is used to indicate speeds of wide range of rotating machine. This RPM indicator remote slave display IM1901T is available in with various process specific features such as high / low alarm, direct displays, PC connectivity and master slave display units.

Features

• Dust proof membrane keyboard (various models)

• Wide range of rpm 0.01 to 999999 rpm

• Microcontroller based highly versatile and reliable digital circuits

• Four to six digit display

• One preset count with relay output at preset count.

• Pulse counting

• Multiplying / dividing constant programmability

Technical Specifications

• Range: 0.01 to 9999 rpm (4 digit unit)

• Input: Proximity / Encoder / Optical sensor / mV

• Decimal point: Floating / Selectable

• Supply: 230 V 50 Hz AC / 110 V AC / 24 V DC / 12 V DC

• Size: 96×96 mm depth 100 mm
