Unidirectional Gauge for non-contact Length Measurement and Speed Measurement

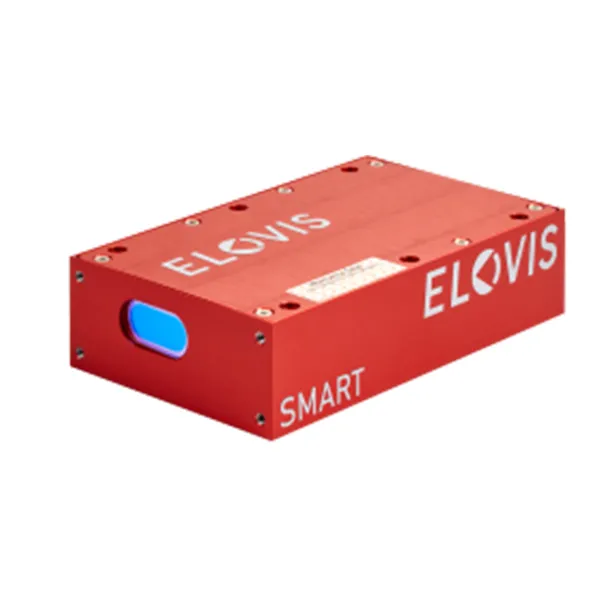

The μSPEED-SMART measurement system is the high performance smart sensor for non-contact length measurement and speed measurement. µSPEED-SMART is the sensor solution, to display winding processes for nearly any number of material and surfaces, at low as well as very high speeds. μSPEED-SMART measures surfaces speeds of processes up to 100 m/s with a general measurement accuracy of +/- 0.05%. μSPEED-SMART combines sensors and evaluation in a 0.9 kg lightweight, compact sensor head housing and directly provides length and/or speed data. The measured value output is done via a quadrature output or as ASCII-string via a serial interface. Industrial bus and Ethernet are available as interface options.
Product Types of µSPEED-SMART – unidirectional sensor for non-contact length measurement and speed measurement
Gauge Example – for low speed and short lengths
µSPEED-SMART-S1/120
The μSPEED-SMART-S1/120 is a unidirectional sensor for non-contact length measurement and surface speed measurement. The SMART-S1 sensor is designed for slow processes without direction reversal, or processes where a directional signal of the machine is present.
Measurement Range: up to 1 m/s
Measurement Distance: 120 mm
Measurement Distance Tolerances: +/- 5mm (+/- 20mm)
For slow processes
calibrateable acc. to MID 2014/32/EU
Gauge Example – for high speed and big stand-off distance
µSPEED-SMART-S80/240
The μSPEED-SMART-S80/240 is a unidirectional sensor for non-contact measurement and speed measurement. The SMART-S80 sensor is designed for very fast-running processes without reversal of direction, or processes in which a directional signal of the machine is present.
Measurement Range: up to 80 m/s
Measurement Distance: 240 mm
Measurement Distance Tolerances: +/- 10 mm (+/- 40 mm)
For fast processes
Calibrateable acc. to MID 2014/32/EG
Applications
Roll Length measurement/Coil Length
Cut-to-length Control
MID certified Length Measurement
Portable/Mobile Length Measurement
Encoder Calibration
Discrete Part Length Measurement
Speed Measurement
Measurement of Differential Speed
