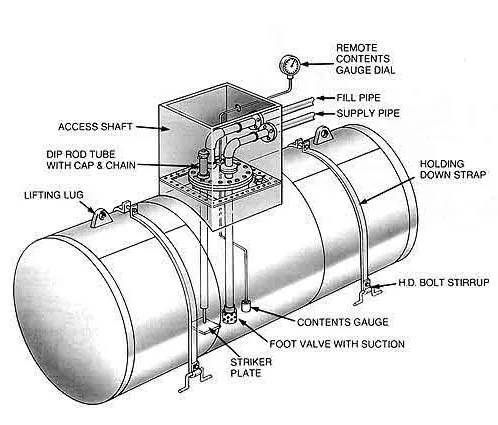

BELOW GROUND SINGLE SKIN STAINLESS STEEL TYPICAL ARRANGEMENT TANK

A COMPLEMENTING RANGE OF UNDERGROUND TANKS (2 – 90 CUBIC METRES) IS AVAILABLE WHERE EXTRA INTEGRITY AND SPILL PROTECTION WITH INBUILT LEAK DETECTION IS ESSENTIAL.

CAPACITY		DIMENSIONS
NOMINAL	DIAMETER	SHELL	O/ALL
M3	MM	MM	MM
2.3 (2300ltrs)	1372	1525	1740
2.8 (2800 ltrs)	1372	1830	2070
4.5 (4500 ltrs)	1372	3050	3290
5.7 (5700 ltrs)	1525	3050	3330
6.9 (6900 ltrs)	1525	3660	3940
9.1 (9100 ltrs)	1830	3355	3695
13.6 (13600 ltrs)	2135	3660	4060
19.0 (19000 ltrs)	2287	4300	4680
23.2 (23200 ltrs)	2287	5520	5900
27.7 (27700 ltrs)	2440	5750	6255
31.8 (31800 ltrs)	2745	5205	5745
36.5 (36500 ltrs)	2745	6000	6540
40.5 (40500 ltrs)	2745	6730	7270
45.4 (45400 ltrs)	2745	7500	8040
55.1 (55100 ltrs)	2745	9150	9690
69.5 (69500 ltrs)	3000	9525	10505
90.6 (90600 ltrs)	3000	12515	13495

BELOW GROUND SINGLE SKIN STAINLESS STEEL TYPICAL ARRANGEMENT TANK

A COMPLEMENTING RANGE OF UNDERGROUND TANKS (2 – 90 CUBIC METRES) IS AVAILABLE WHERE EXTRA INTEGRITY AND SPILL PROTECTION WITH INBUILT LEAK DETECTION IS ESSENTIAL.

CAPACITY		DIMENSIONS
NOMINAL	DIAMETER	SHELL	O/ALL
M3	MM	MM	MM
2.3 (2300ltrs)	1372	1525	1740
2.8 (2800 ltrs)	1372	1830	2070
4.5 (4500 ltrs)	1372	3050	3290
5.7 (5700 ltrs)	1525	3050	3330
6.9 (6900 ltrs)	1525	3660	3940
9.1 (9100 ltrs)	1830	3355	3695
13.6 (13600 ltrs)	2135	3660	4060
19.0 (19000 ltrs)	2287	4300	4680
23.2 (23200 ltrs)	2287	5520	5900
27.7 (27700 ltrs)	2440	5750	6255
31.8 (31800 ltrs)	2745	5205	5745
36.5 (36500 ltrs)	2745	6000	6540
40.5 (40500 ltrs)	2745	6730	7270
45.4 (45400 ltrs)	2745	7500	8040
55.1 (55100 ltrs)	2745	9150	9690
69.5 (69500 ltrs)	3000	9525	10505
90.6 (90600 ltrs)	3000	12515	13495
