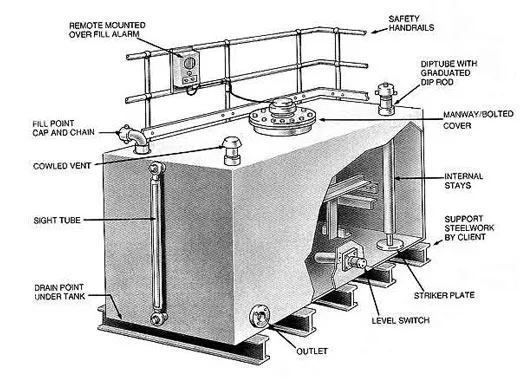

SITE WELDED - STAINLESS STEEL TANKS

SITE WELDED - STAINLESS STEEL TANKS

Specification – Standard Tanks.

CONSTRUCTION: Rectangular, closed top, internally stayed

DESIGN CODE: Generally to BS799

CAPACITY RANGE: 2700-55000 litres

STEEL GRADES: A240 TP 316L & 304L

DESIGN PRESSURE: Atmospheric pressure, except:

  • Type ‘J’ to 0.5M static head above tank top

  • Type ‘K’ to 7.5M static head above tank top

WELDING: Types ‘J’ and ‘K’ internally welded to BS799

TESTING: To design code.

FITTINGS: As per Client requirements.

FINISH–: Internal Cleaned, self colour

FINISH–: External Cleaned, self colour

SITE WELDED - STAINLESS STEEL TANKS

SITE WELDED - STAINLESS STEEL TANKS

Specification – Standard Tanks.

CONSTRUCTION: Rectangular, closed top, internally stayed

DESIGN CODE: Generally to BS799

CAPACITY RANGE: 2700-55000 litres

STEEL GRADES: A240 TP 316L & 304L

DESIGN PRESSURE: Atmospheric pressure, except:

  • Type ‘J’ to 0.5M static head above tank top
  • Type ‘K’ to 7.5M static head above tank top

WELDING: Types ‘J’ and ‘K’ internally welded to BS799

TESTING: To design code.

FITTINGS: As per Client requirements.

FINISH–: Internal Cleaned, self colour

FINISH–: External Cleaned, self colour
