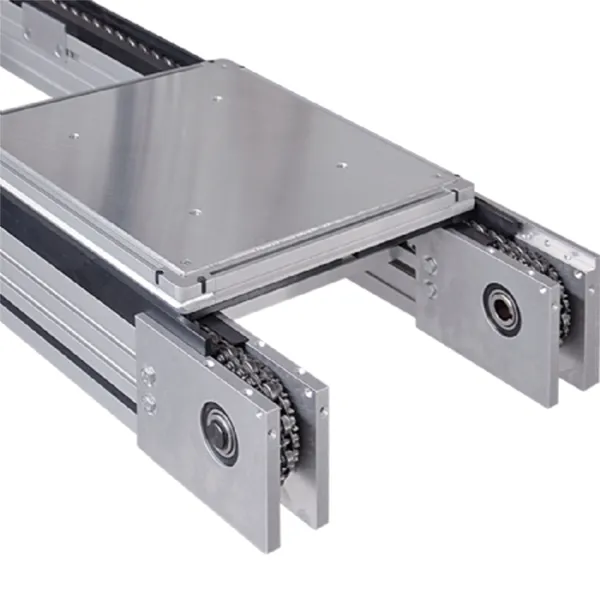

Accumulating Roller Chain Conveyor

Accumulating Roller Chain Conveyor

Product Information

Low back pressure accumulating roller chain conveyor, SRF-P 2010, is designed for medium to heavy duty pallet-handling conveyor systems. The free running load rollers, within the chain, ensure quiet operation; including during product accumulation.

Features:

• Frame: 100 mm deep profile, 50 mm wide
• Pulley: 1/2" pitch
• Width: Each lane is 50 mm wide, outside frame width is nearly unlimited, single or multiple lanes
• Length: 500 mm to 20,000 mm
• Load: Up 250 lbs. per pallet and 2,000 lbs. per drive
• Speed: Up to 200 fpm (speeds up to 80 fpm are preferred for VersaMove)
• Constant or Variable speed options
• Voltge: All standard US, Mexico and Canadian voltages
• Chain: 1/2" pitch accumulating roller chain
• Plastic or steel rollers
• In-line or staggered rollers
• Accessories: Compatible with all mk side rails and support
