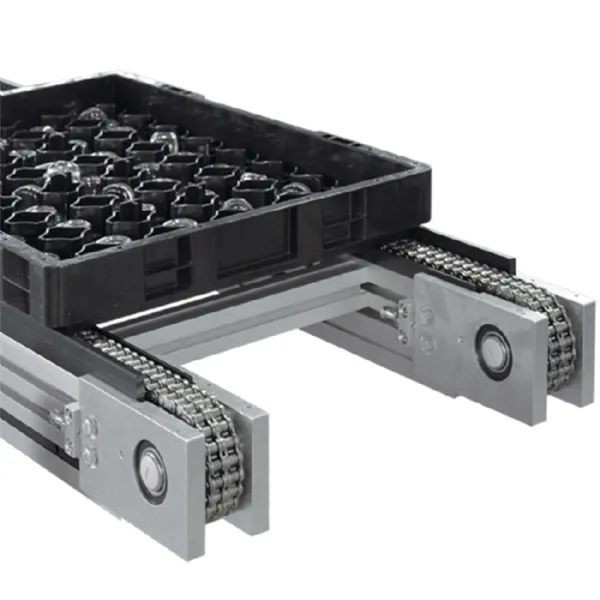

Low Profile Roller Chain Conveyor System

Low Profile Roller Chain Conveyor System

Product Information

Roller chain conveyor KTF-P 2010 is a low profile conveyor that offers high load capacity over long runs.

This roller chain conveyor is bi-directional, making the KTF-P conveyor system an excellent choice for conveying solutions involving workpieces and other pallets, including those in the automotive, manufacturing, robotics industries (to name a few).

Features:

• rame: 100 mm deep profile, 50 mm wide
• Pulley: 1/2" pitch, 22 tooth
• Width: Each lane is 50 mm wide, outside frame width is nearly unlimited, single or multiple lanes
• Length: 500 mm to 15,000 mm
• Load: Up 2,200 lbs.
• Speed: Up to 200 fpm
• Constant or Variable speed options
• Voltage: All standard US, Mexico and Canadian voltages
• Chain: 1/2" pitch chain, single or duplex
• Acessories: Compatible with all mk side rails and support
