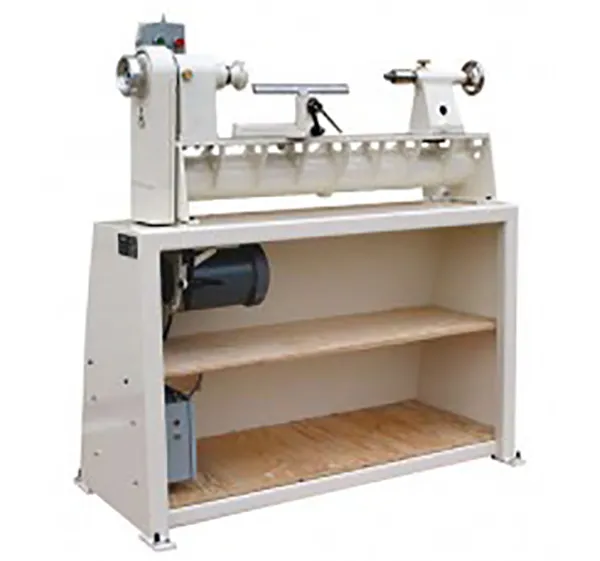

Part No. 1224 - 1224 LATHE

Part No. 1224 - 1224 LATHE

Part No. 1224 - 1224 LATHE

 GENERAL DIMENSIONS

■  Spindle Height:  44½”

■  Power Input:  110V, Single Phase ■  Length x Width:  47 x 23½”

■  Bench Height:  30”

■  Weight:  Approximately 300 lbs.

  12½” swing over the bed (9” swing over Banjo)   24” between centers

  11” Stainless Steel Toolrest with 1” Post

  2 step pulley (50 - 2000 / 100 - 4000 rpm)

  Two position Control Box

  Spindle is hardened and ground

  Spindle Thread:  1” - 8tpi RH (inboard

         ¾” - 16tpi RH (outboard)

  7/16” thru hole (in spindle)

  24 position indexing

  #2 Morse Taper in headstock & tailstock

  Forward & Reverse with two pre-programmed accel / decel settings

  110V input, 1HP AC variable speed inverter (drive) with dynamic braking (220V  also available)

  1HP Marathon Motor

  High Performance Powder Paint on Stand & Lathe   Cast Iron Tailstock with Acme thread & 3” quill travel   Patented clamping mechanism in Banjo

  Offset Bed for easy clean up

PACKAGE INCLUDES

  • #2 MT Safe Driver
  • #2 MT Live Center (with cones)
  • Knock-out Rod
  • Powder Painted Metal Stand

    (Two wood shelves included)

  • 3” Steel Faceplate (Powder Painted)
  • 11” Stainless Steel Toolrest
  • Two location Control Box
  • Powder Painted Lathe
  • Leveling Pads
  • 4mm, 6mm and 8mm Allen Keys
  • Spindle Lock Wrench
  • Hand Wheel

OPTIONS

  • 220V input is offered at no extra charge
  • Remote Start / Stop
  • 1224 Lathe Bed Extension (24”)
  • 1224 Wheel Set
