Gripple C-Clip
Product Details
Catenary Systems
The Dynamic range is designed specifically for suspending high load and dynamic applications including cold room ceilings, HVAC, mechanical and electrical services. The Dynamic range can be installed quickly, and is engineering with an integral lock, which locks the wire in both channels simultaneously. Using the tensioning tool the system can be easily tensioned and re-tensioned.

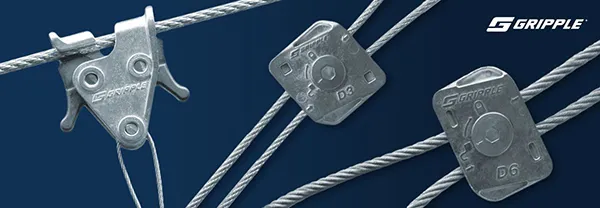

C-Clip
Ideal for suspending objects from 6mm and 3mm wire. The C-Clip is adjustable by pressing the cams on the sides, making it quick to install and un-install. These lock solidly in place even at angles up to 60°.
What's Included
Supplied in ready-to-use kits. Including:
How to Chose the Right Size
Please contact us for full technical specification and certification.
Technical Data
Gripple Size
Safe Working Load
Safety Factor
D3
0-30 kg
5:1
D6
0-100 kg
C-Clip (3mm)
0-10 kg
C-Clip (6mm)
0-45 kg
