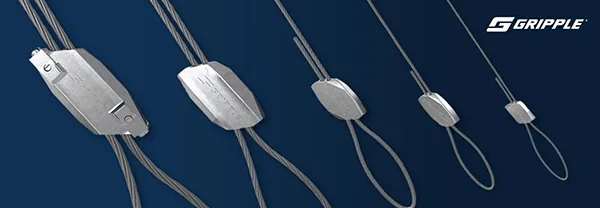

Gripple Standard Hanger
Product Details
The Gripple Standard Hanger is suitable for suspending a variety of mechanical and electrical services from different substrates.
What's Included
All our Standard Gripple products are supplied in ready-to-use kits. Including:
How to Chose the Right Size
A simple formula to determine the correct Gripple size is:
Weight per metre x distance between hangers An example of this would be - 15kg load per metre x 2m between hangers = 30kg
This would mean the minimum size required would be No.2 Gripple
Technical Data
Gripple Size
Safe Working Load
No.1
0 - 10 kg
No. 2
10 - 45 kg
No. 3
45 - 90 kg
No. 4
90 - 225 kg
No. 5
225 - 325 kg
