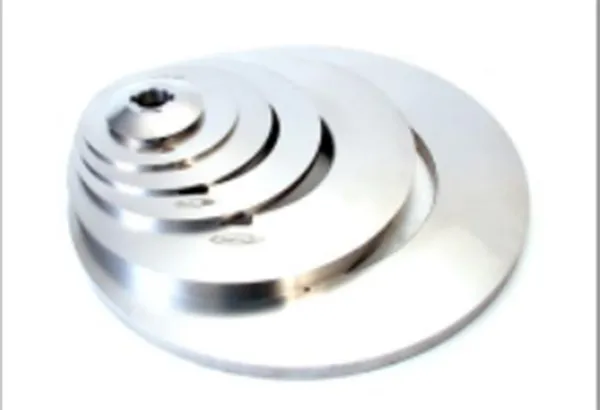

Slitting Line Tooling
DeeTee offers a complete range of Slitting Line Tooling confirming to international standards - Rotary Metal Slitting knives, Metal Spacers, Rubber bonded spacers, stripper rings, Over arm Separator Discs , shims and other precision tools. Heat treated in salt bath furnaces, DeeTee’s slitting line tooling has the highest degree of hardness uniformity and the ideal metallurgical properties to slit any metal. DeeTee manufactures slitting line tooling in Standard and Extra Precision tolerance grades with lapping. Standard for slitting strips above 1mm thickness and Extra precision grade for foils up to .2mm thickness.
DeeTee can manufacture Slitting Line tooling up to 600mm diameter.
SLITTING LINE TOOLING COMPRISES OF
•01. SLITTING KNIVES / SLITTING CUTTERS / CRCULAR KNIVES
•02. METAL SPACERS.
•03. RUBBER BONDED SPACERS
•04. LOOSE RUBBER RINGS
•05. SHIMS
•06. SPACERS & SEPARATOR DISC FOR OVER ARM SEPARATORS
Rotary slitting knives are manufactured from the finest imported alloy steels.
The knives are made from –
AISI D2 SKD 11 1.2379
AISI D3SKD 11.2080
AISI H13SKD 611.2344/45
AISI S11.2550
AISI M2SKH511.3343
SPECIAL 8% Cr High alloy tool steels and POWDER METALLURGICAL grades like ASP2023 are used for special applications Spacers are made of en31 / SUJ2 / 100Cr6 / SAE52100.
Rigid inspection at every stage ensures top Quality.
